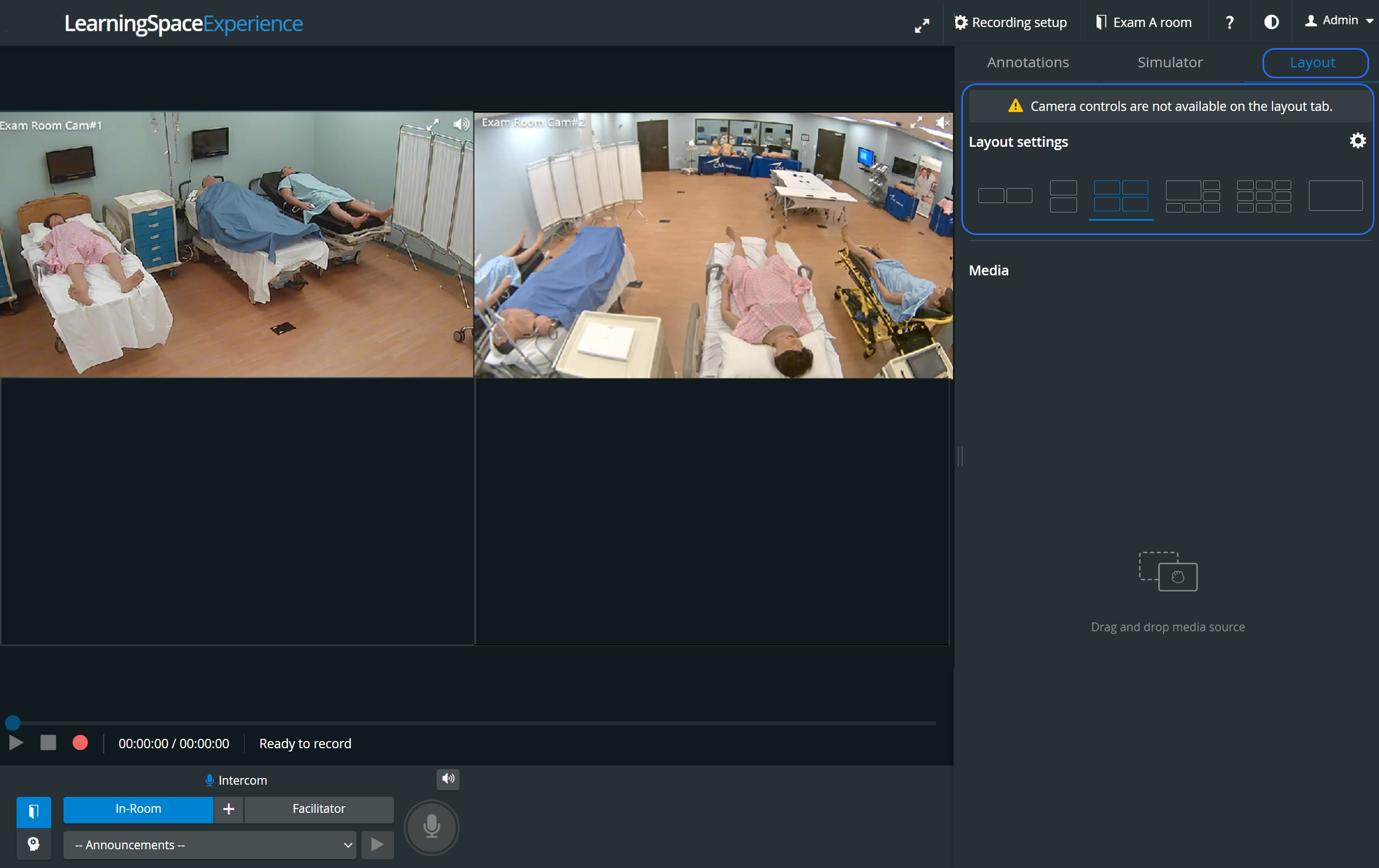

The Layout tab is on the right side of the Single Room View and contains the Layout settings and the Media section panels.

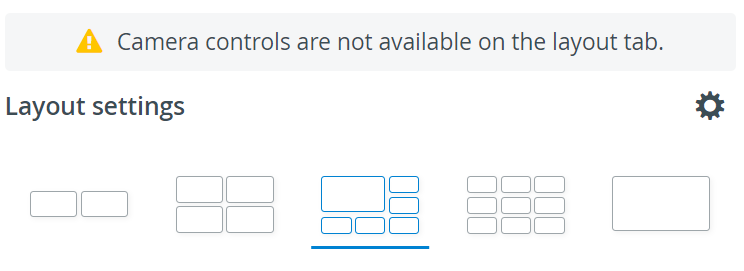

Here, users can choose from the following views to get the most convenient and suitable layout for their aims:


  • Double view:  2x1 feeds displayed

  • Quad view:     2x2 feeds displayed

  • Pinned view:  1+5 feeds displayed; one feed is highlighted

  • 3x3 view:         A maximum of nine feeds displayed

  • Single view:    One selected feed is displayed. Picture-in-Picture view can be enabled by the toggle:

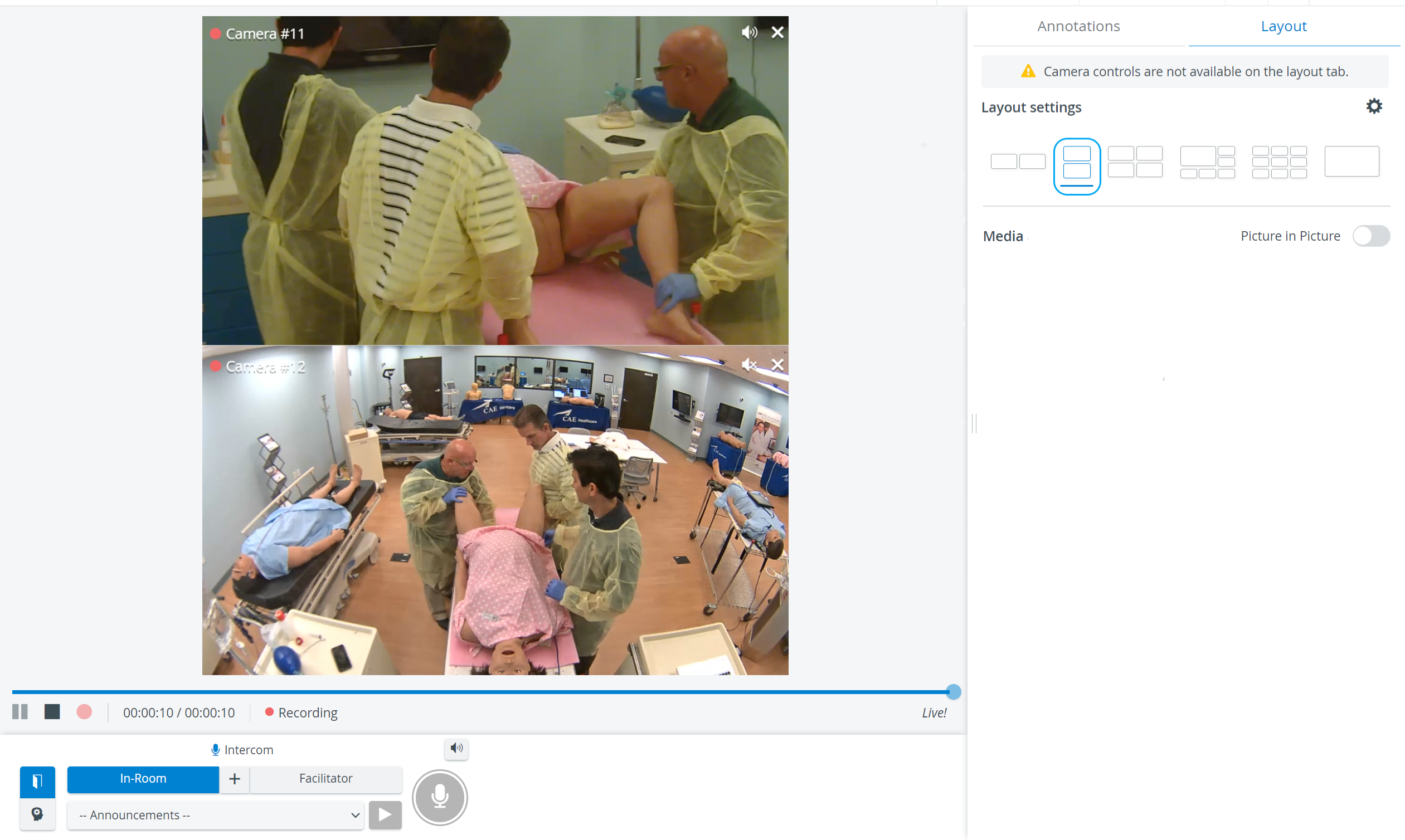

Vertical Double Layout

In some cases, two camera views must be displayed on top of each other (i.e., in a single column) during recording.
In the latest versions of LearningSpace, the utilization of the space available in the Single Room View panels can be maximized, and the panels on the right side (Annotations tab, Layout tab) or additional windows can be displayed in a larger size with the help of the Vertical double layout feature.






IMPORTANT

While the Layout tab is active, the on-screen Camera controls (e.g., PTZ) are disabled.

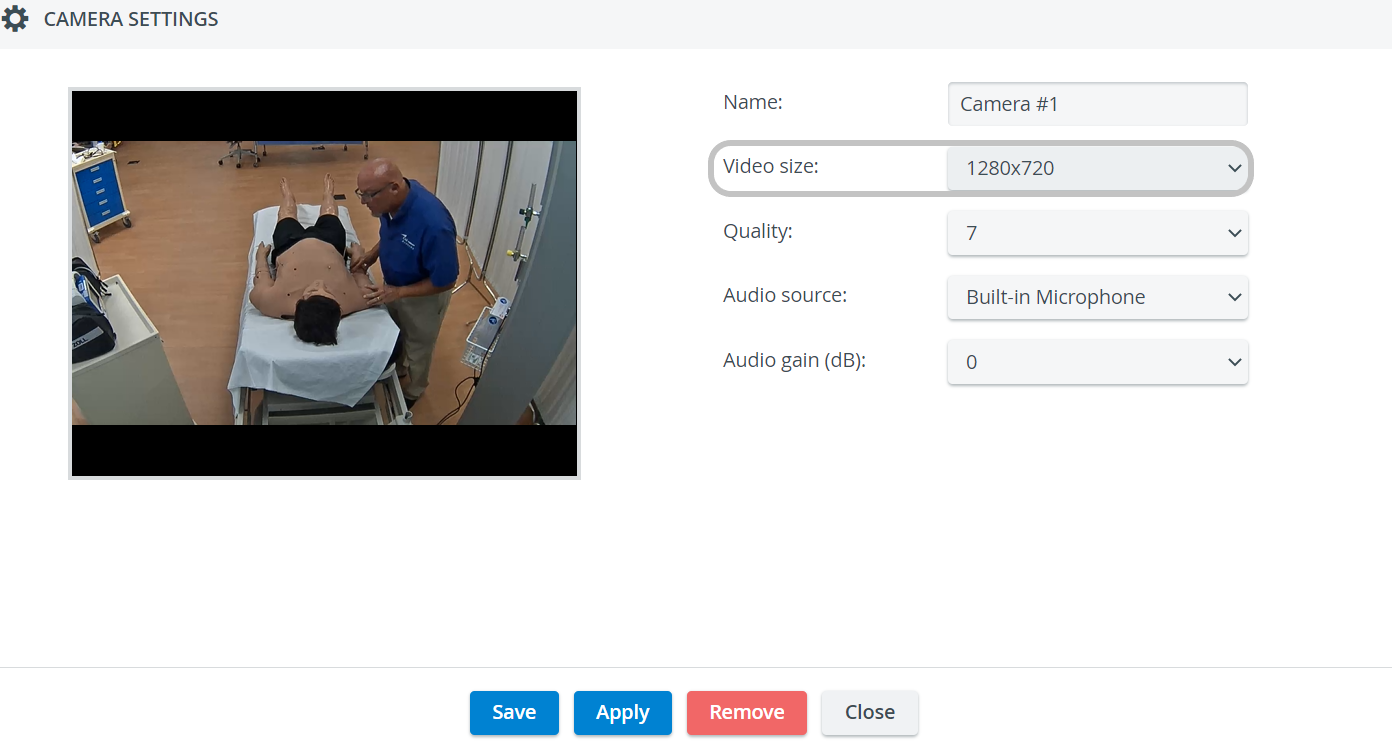

The recommended video size (aspect ratio) is 16:9 (e.g. 1280x720).
The sizing of camera streams might not be optimal with a 4:3 video size _(_an additional black bar/stripe might be visible at the upper and lower edges of the screen).


Before saving personalized layouts for new rooms, all media sources are displayed in the optimal layout by default.

Media Section

Camera feeds and simulator-related media (CTG, waveform, and trendchart/patient monitor) are added to a room in the Media section. Media can be moved to and removed from the video layout - pinned or unpinned - using the drag-and-drop or pin-to-layout functionalities. This way, only the selected media sources will be presented to the viewers.

Drag-and-drop functionality

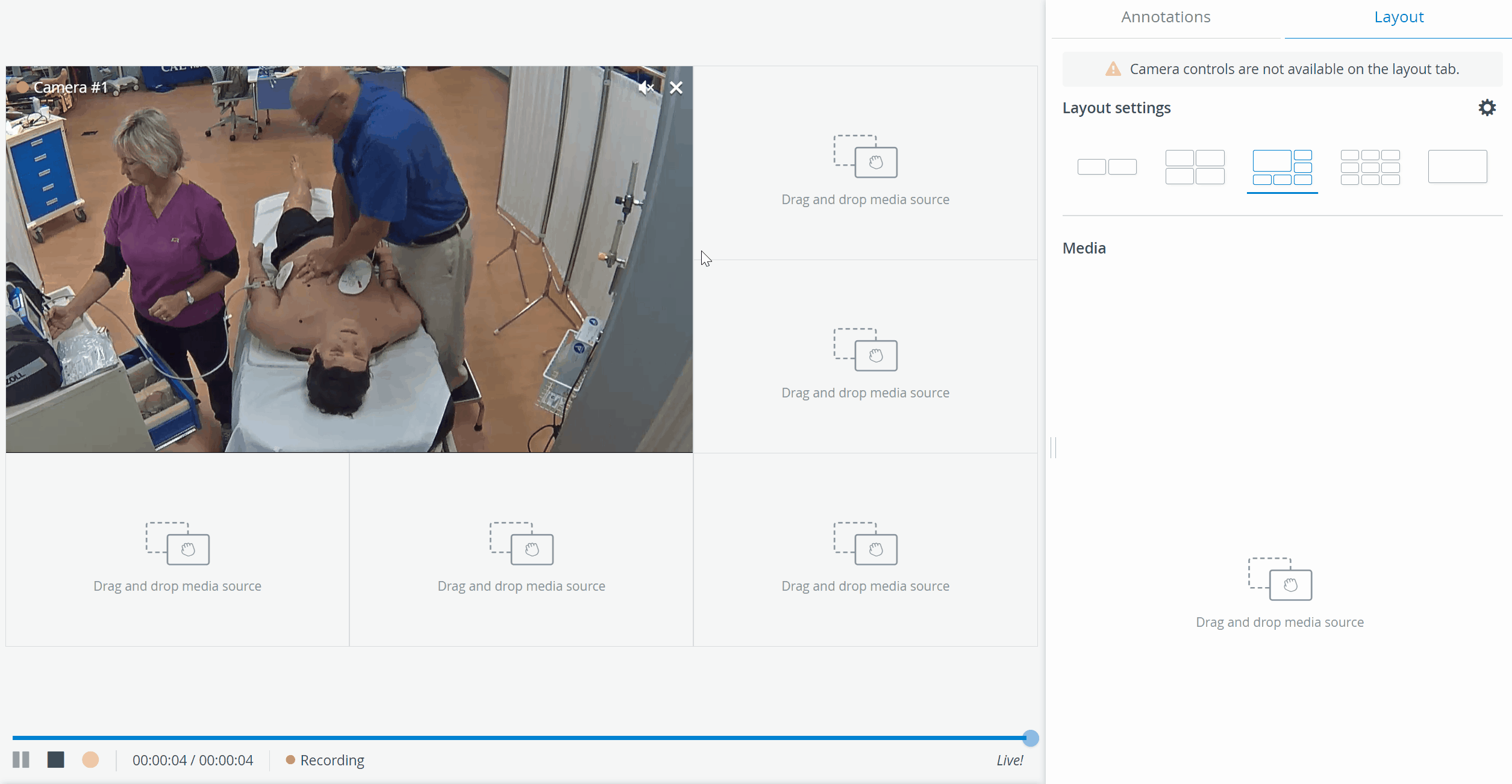

Media sources (camera feeds, physio apps) can be moved into the layout or the Media section as desired using the SRV's new drag-and-drop functionality.


Pin-to-Layout

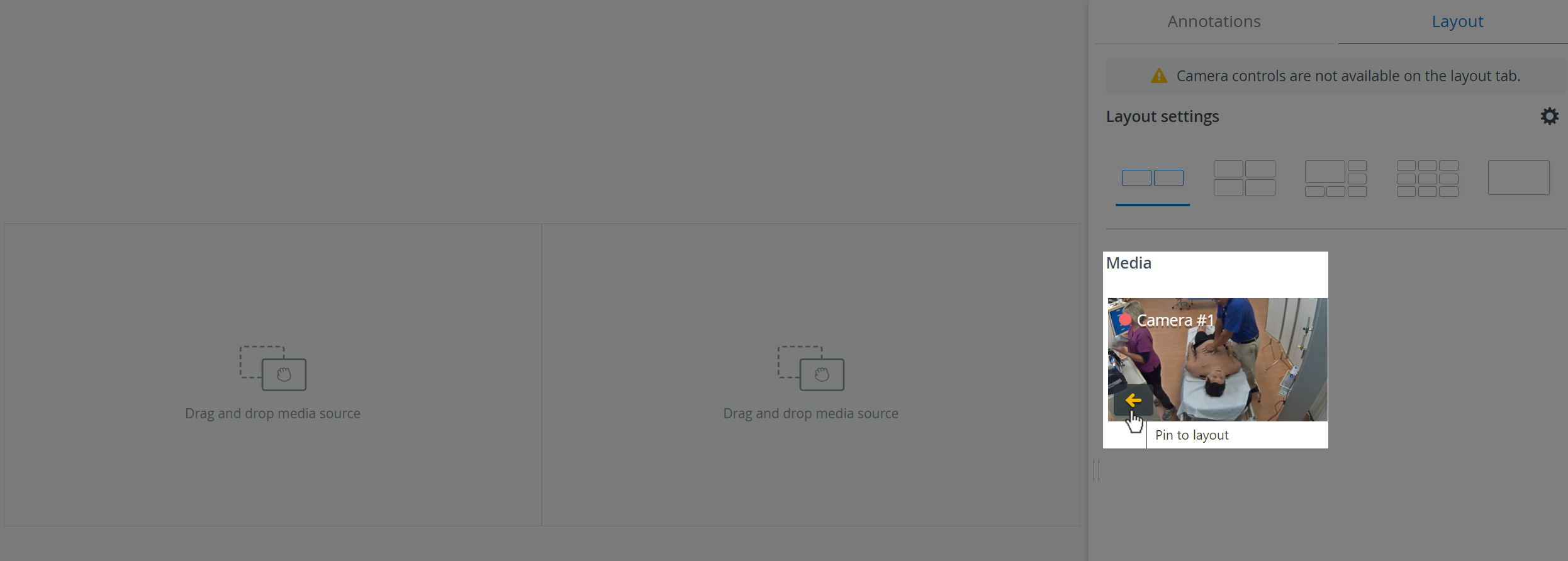

Media sources can be "pinned" to the layout also by clicking on the

icon in the respective feed.

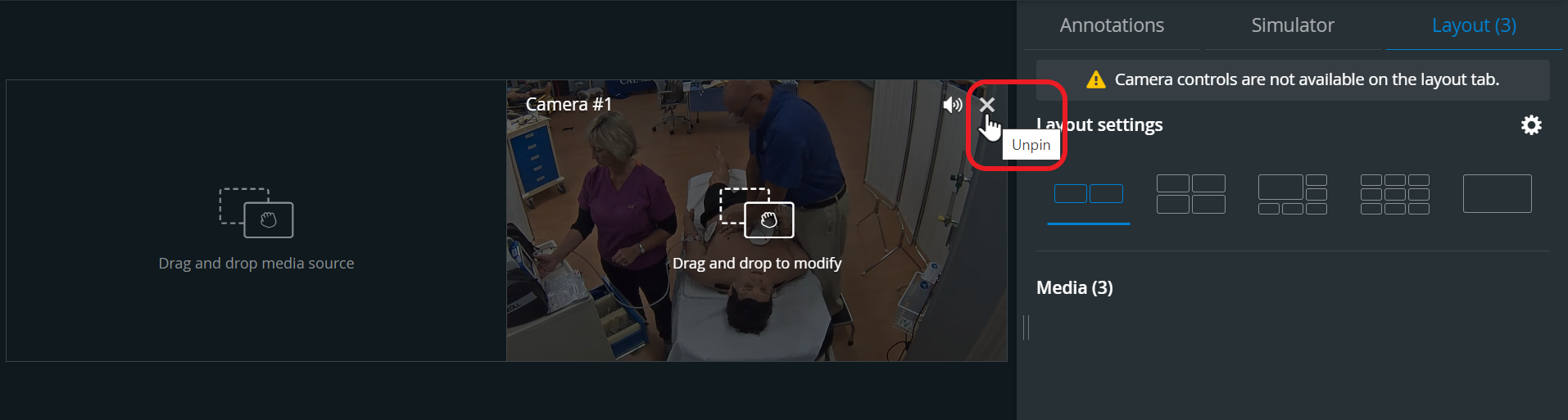

Media can be "unpinned" by clicking the

in the upper right corner of the camera/media panel, and thus moving it to the Media section.


Picture-in-Picture

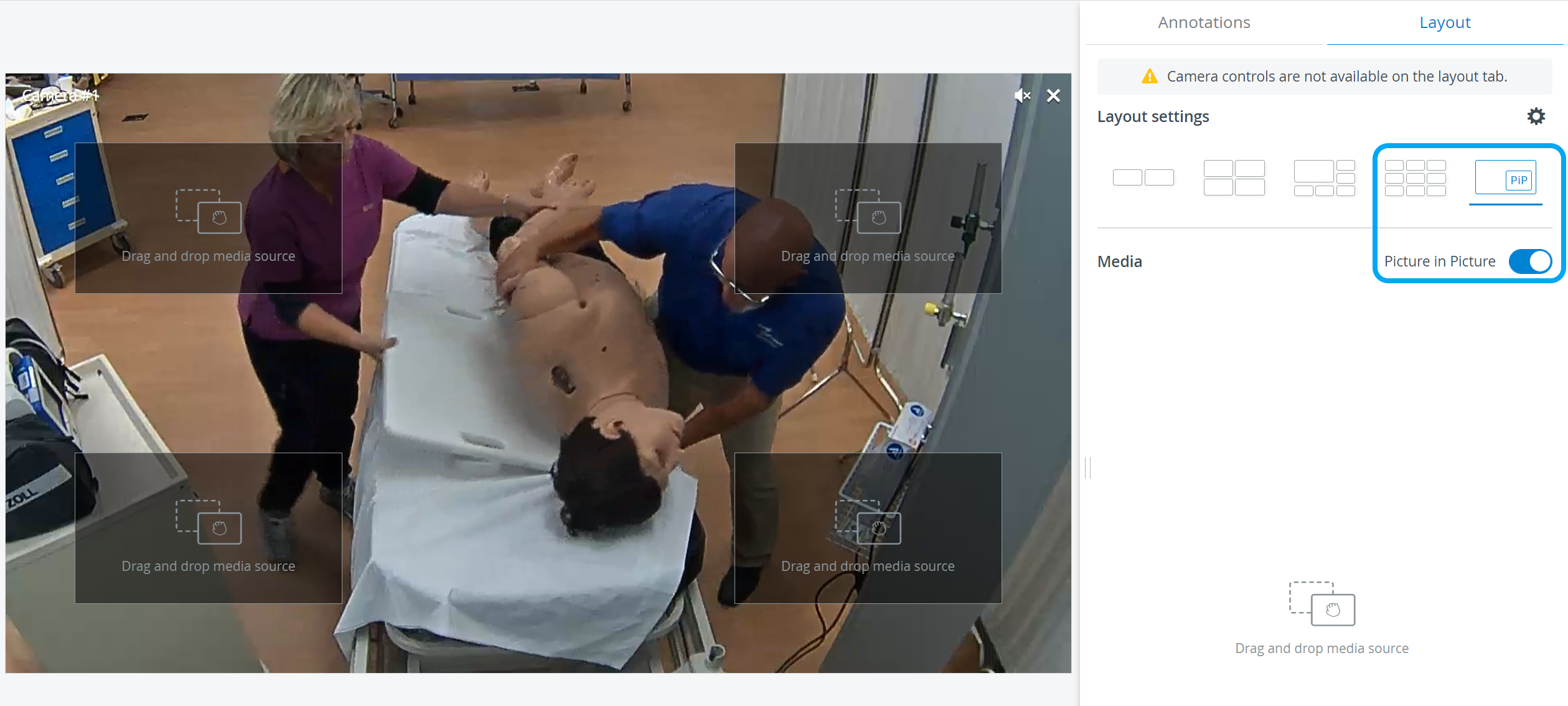

One desired camera feed/media source can be displayed focused, while the rest media sources  (a maximum of four) are displayed in the corners of the video layout.
Media sources (camera feeds, physio apps) can be moved into the layout or the Media section as desired using the SRV's new drag-and-drop or pin-to-layout functionalities.


The Picture-in-Picture toggle is only available in the single Layout view.

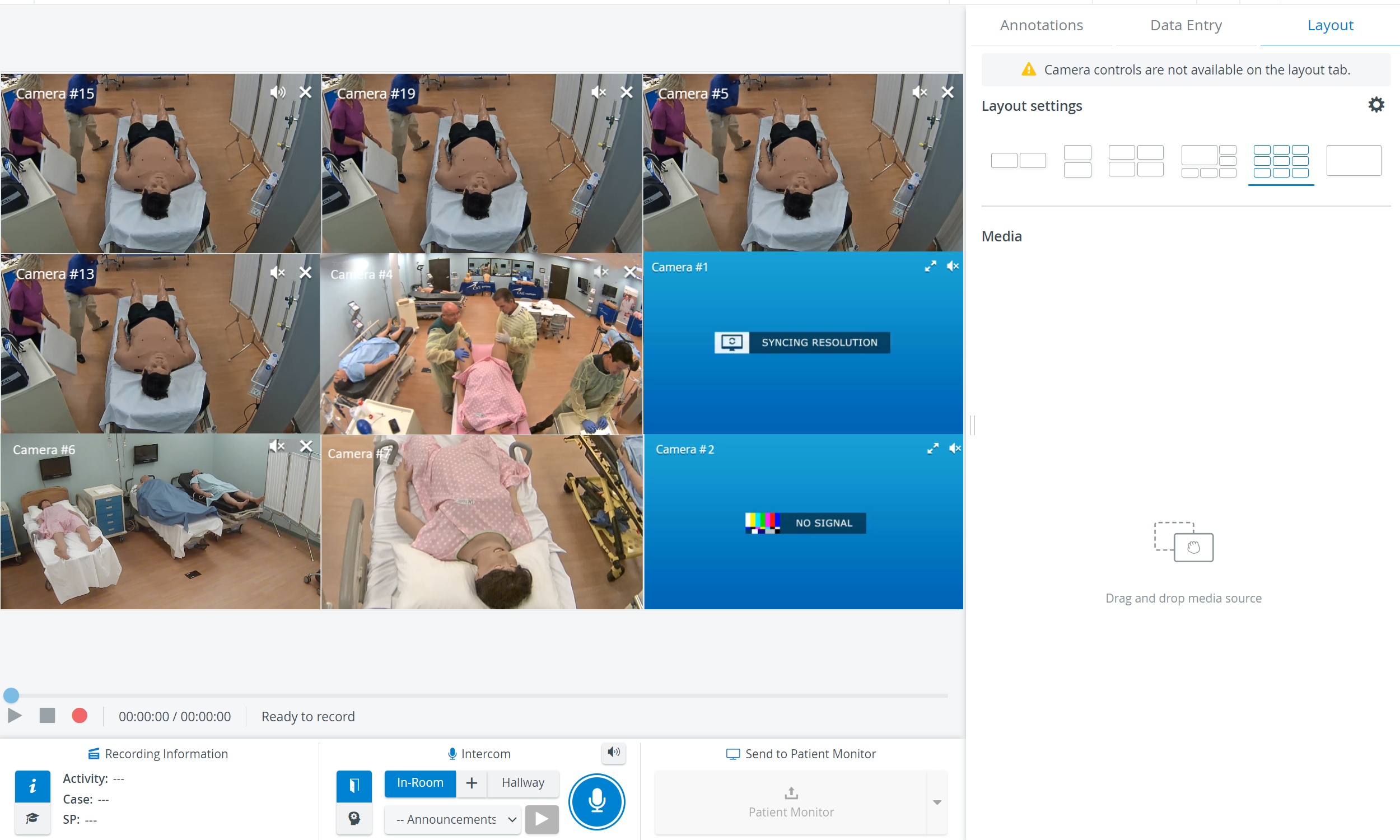

9-camera feed

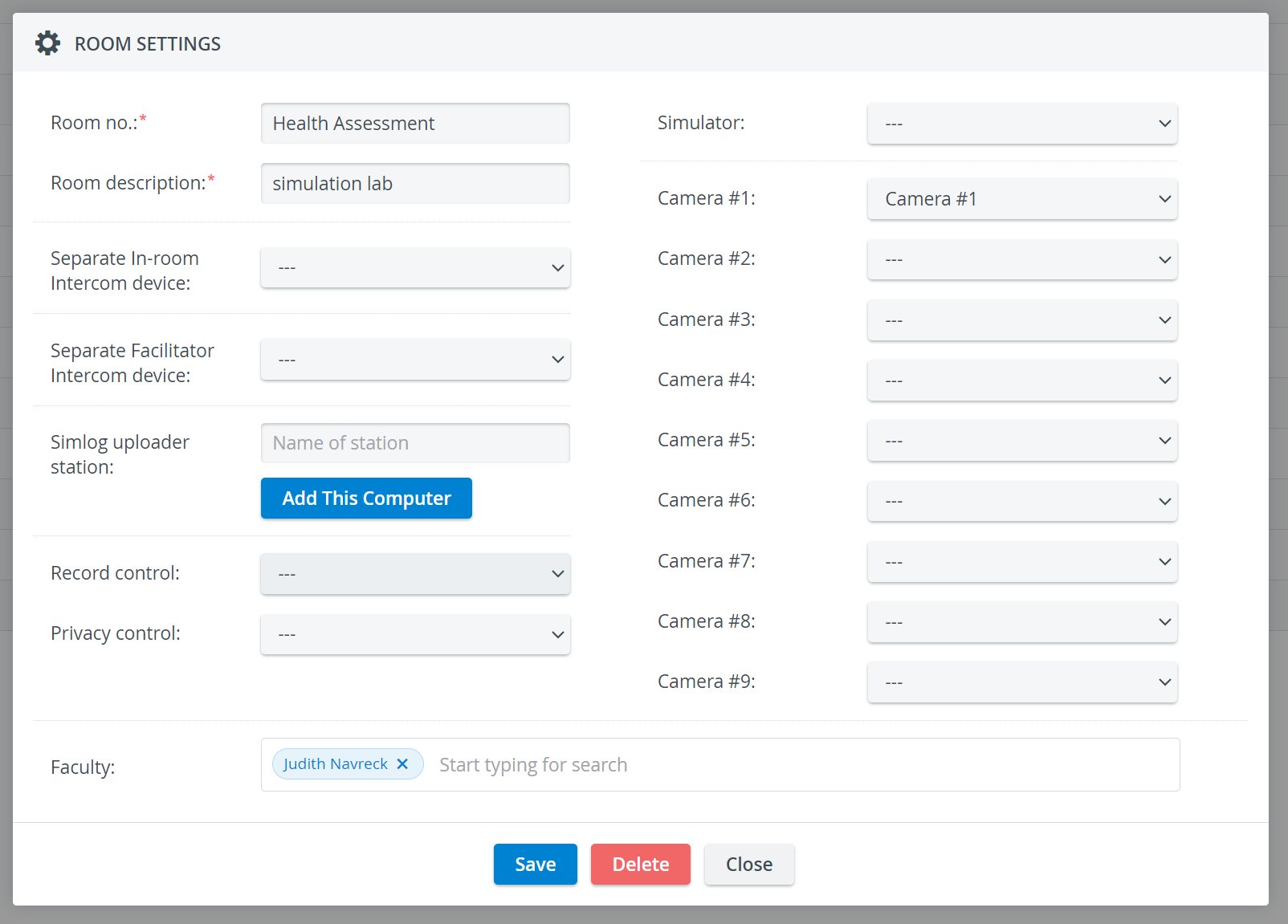

In the newest release of LearningSpace, #6, #7, #8, and #9 optional camera selector dropdowns have been added to the Room editor of the System module.
It only allows the Single Room View's (SRV) 3x3 layout to be used with camera feeds.





See our Practical Recording and Recording - FAQ pages and related Training Videos.
