CO Screen Layout

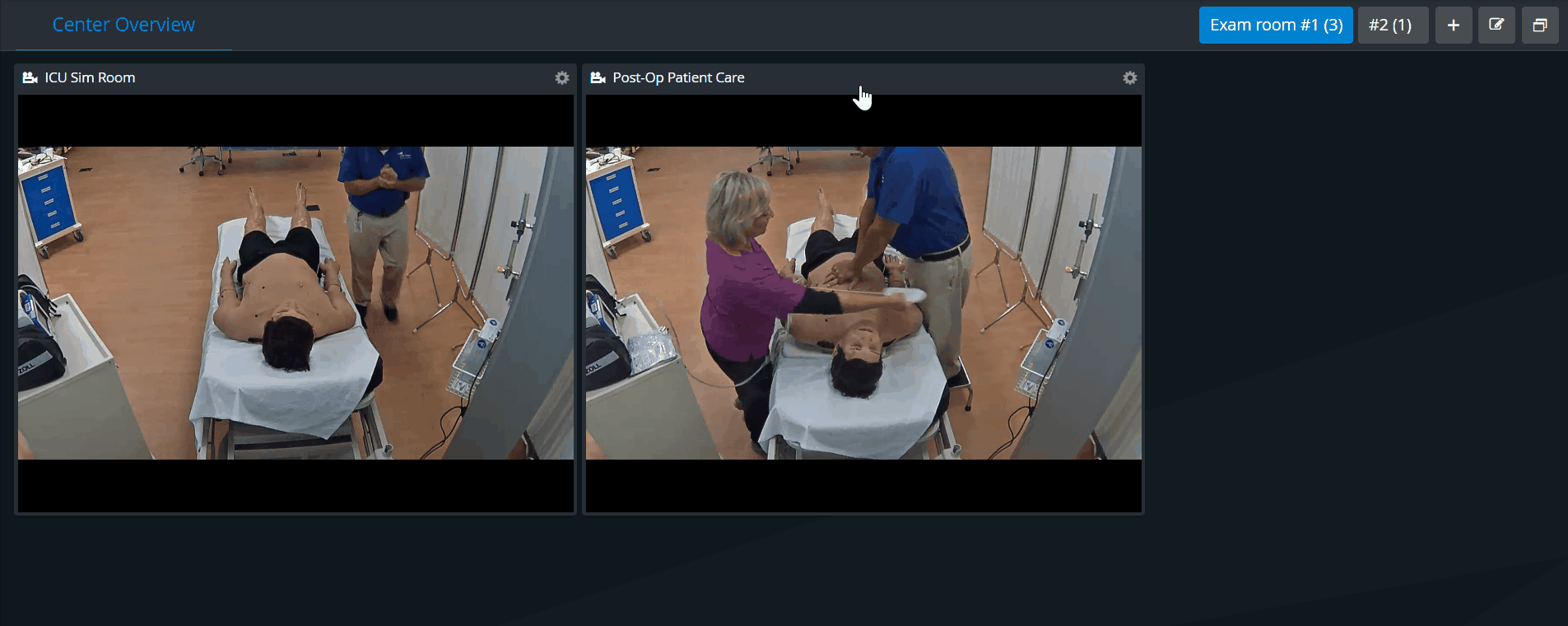

The Center Overview (CO) may consist of more than one room tab displayed on the header's right side, including one or more room panels. The number of rooms on each tab is indicated in parentheses.
Rooms can be relocated from one tab to another but cannot be copied.
NOTE: Room tabs can be added by clicking the + icon or deleted by clicking the X of the given tab.
IMPORTANT: Only room tabs containing no room panel can be deleted.
The CO can be customized by hiding or sending desired room panels to full screen by clicking the cogwheel in the top right corner of any room panel and then clicking the respective icons.
To re-display a hidden room panel, click the Room visibility control icon (the double window next to the room tabs) and click the grayed (hidden) room name.

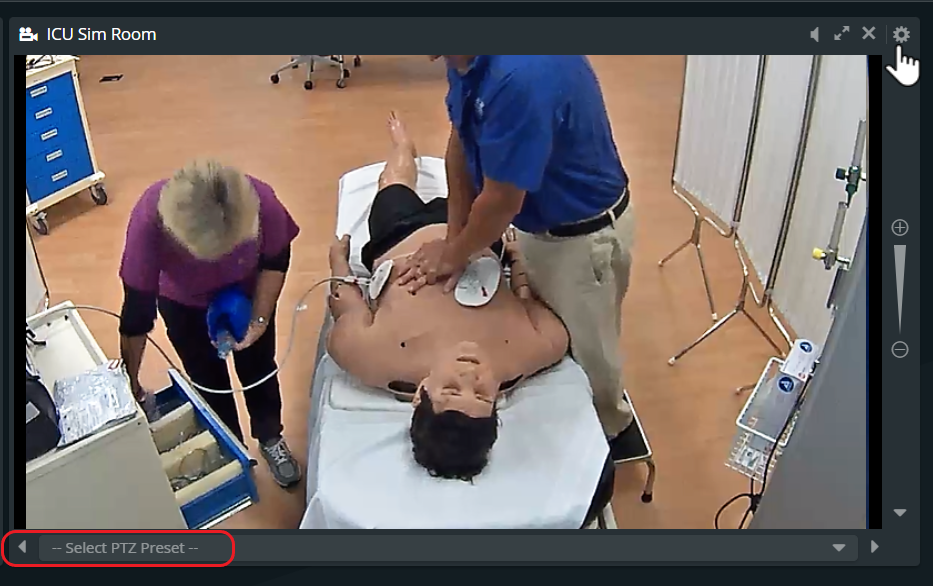

A PTZ camera's pan and tilt functions can be adjusted by dragging the crosshair toward the desired direction.
The zoom function can be controlled by clicking the plus or minus signs on the right side of the camera panel.
The right or to the left movement/adjustment of the camera can be controlled by clicking the arrows at the bottom of the camera panel (next to "Select PTZ Preset").

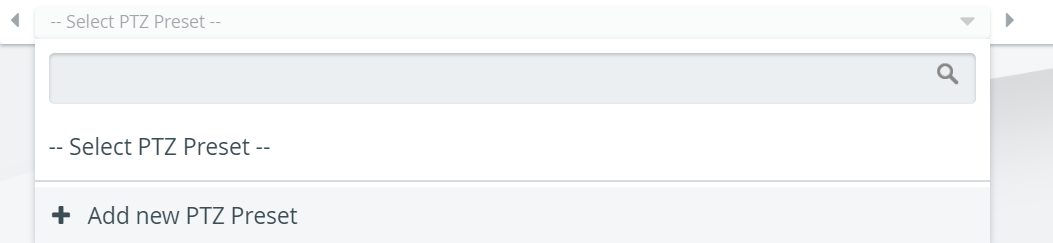

PTZ preset: To save a particular view of a PTZ camera, click the Presets drop-down, type the desired title in the Add new preset field, and click the plus button. To select an already added view, click its title in the drop-down.
For more information, see our Practical Recording and Recording - FAQ pages.
