How can I configure LDAP synchronization?

Configure LDAP synchronization in Directory Access Settings in System.

Contact your organization’s network administrator or IT professional for the exact details of your directory server.

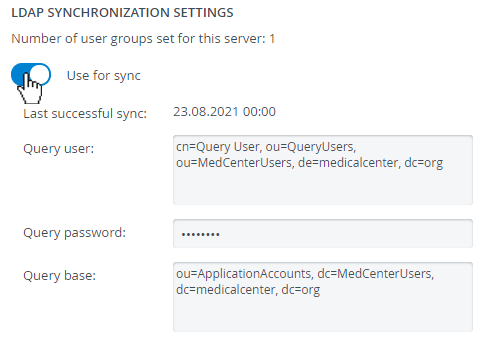

  1. Once your connection is established with the directory server(s),  switch on the Use for Sync toggle to continue.

  2. Provide the name and password of the query user of your directory server.



  3. Also, provide the query base.

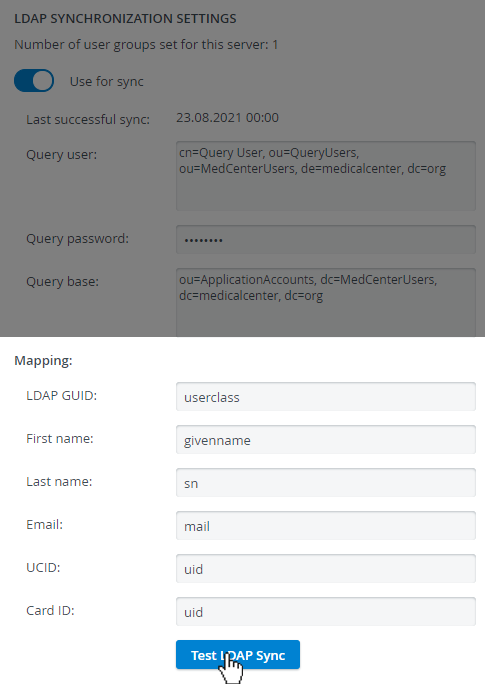

  4. At Mapping, enter the attributes used on your directory server that correspond with each personal detail field (e.g., first name, email, UCID, etc.).

    Only the Card ID field is optional; all other fields are mandatory.

    Each time you synchronize groups, LearningSpace Essentials will update user details in these fields accordingly.




  5. Click Test LDAP Sync to check if everything has been set up correctly.

    The query user requires every field set up for Mapping. For example, make sure that the query user has a first name and last name on your directory server; otherwise, LDAP Sync testing will fail.

    Find out how to import a group of users from your directory server and how to synchronize users on this page.
