Layout tab

If your layout is different in your Single Room View, you probably have the Legacy version. For the user guide of Legacy pages, please go here.

Important Note for Enterprise Lite Users

This feature is for use with in-campus audiovisual (AV) inputs. Hence, it is not available for LearningSpace Enterprise Lite, which is only used for web-conferencing-based virtual simulation encounters. To unlock this feature, please upgrade to the LearningSpace Enterprise solution.

Layout tab

The Layout tab on the right-hand side of the Single Room View contains the Layout settings and the Media section panels.


Layout settings section

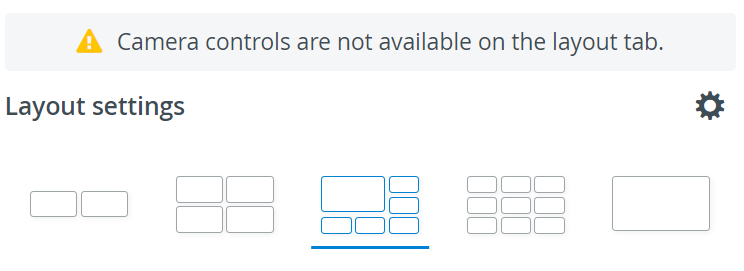

In the LearningSpace Single Room View layout, users can choose from the following views to get the most convenient and suitable layout for their aims:

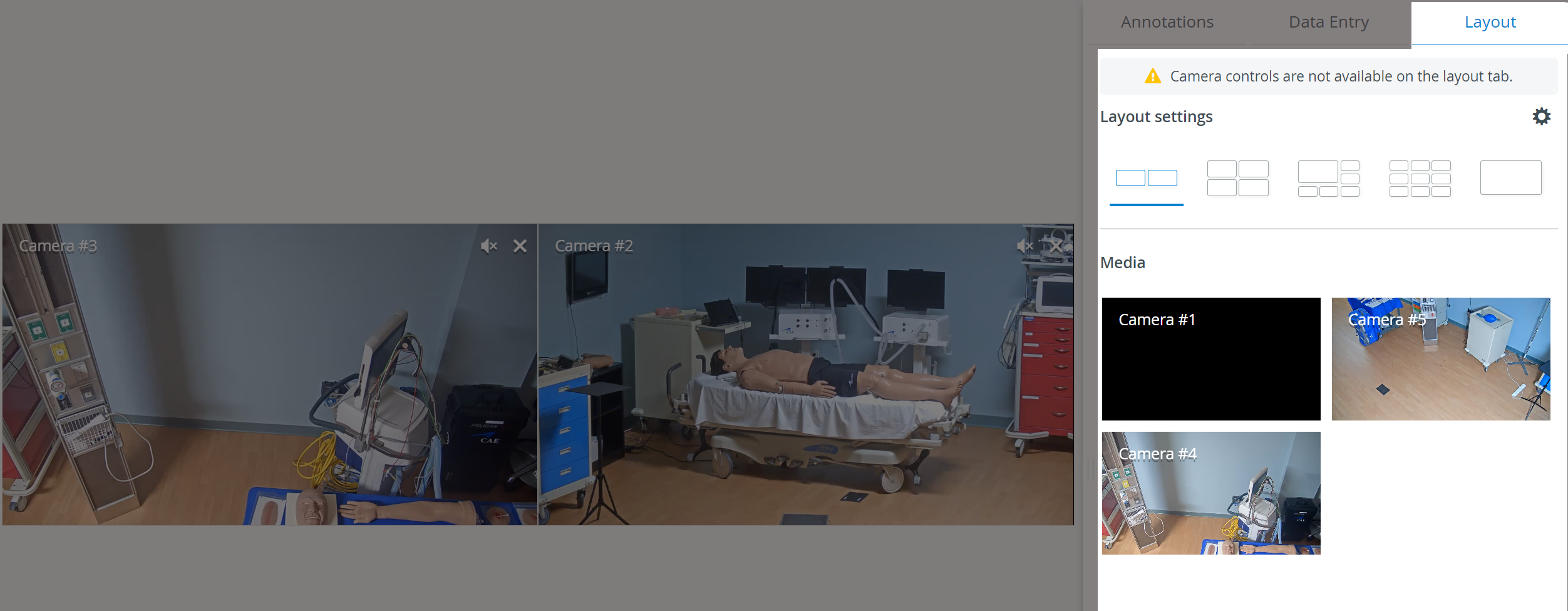

  1. Double view:  2x1 feeds are displayed

  2. Quad view:     2x2 feeds are displayed

  3. Pinned view:  1+5 feeds are displayed, and one feed is highlighted

  4. 3x3 view:         A maximum of nine feeds are displayed

  5. Single view:    One selected feed is displayed. The toggle can enable Picture-in-Picture view:




Vertical Double Layout

In some cases, two camera views need to be displayed on top of each other (i.e., in a single column) during recording.

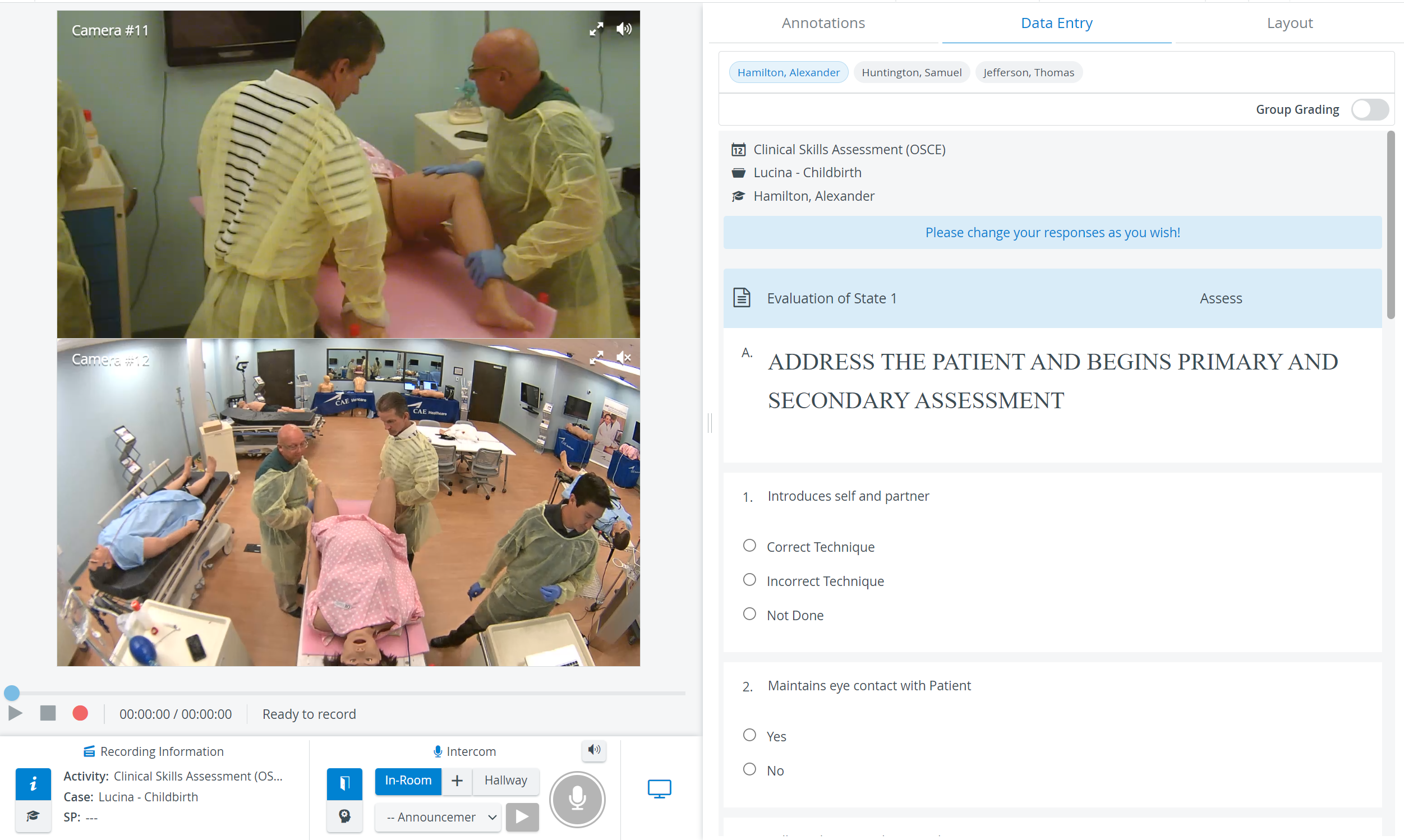

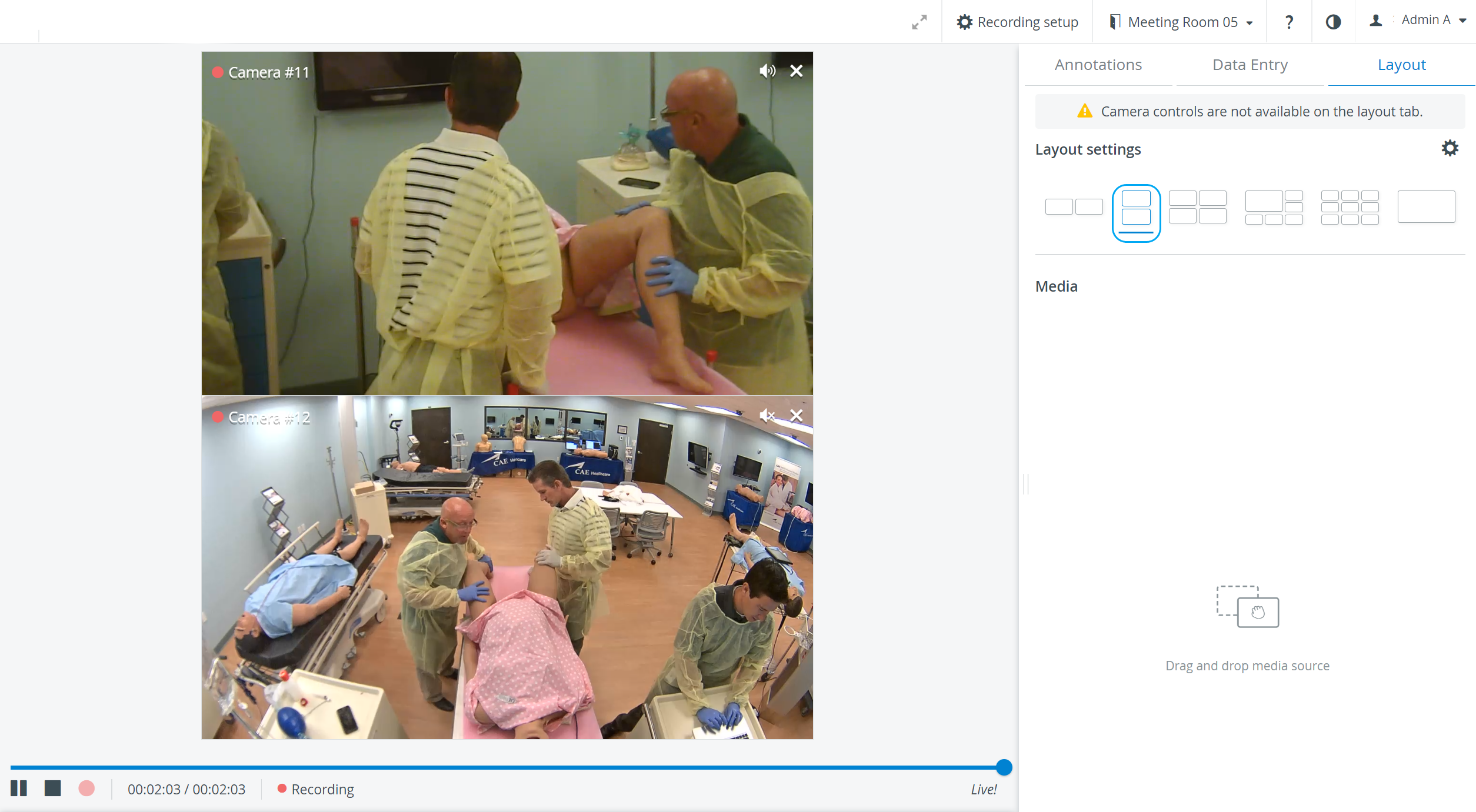

In the latest versions of LearningSpace, the utilization of the space available in the Single Room View panels can be maximized, and the panels on the right side (Annotations tab, Data Entry tab, etc.) or additional windows can be displayed in a larger size with the Vertical double layout feature:

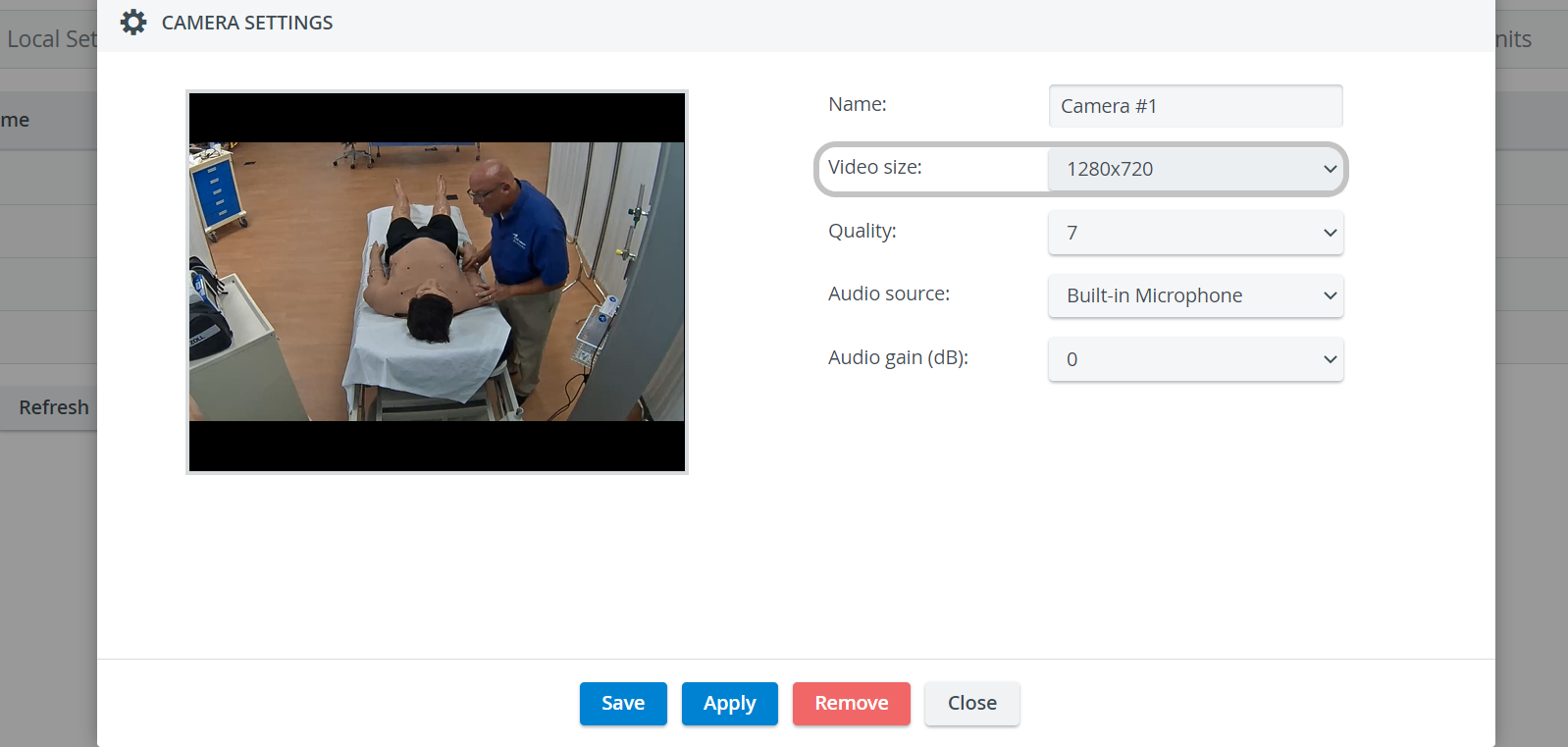

The recommended video size (aspect ratio) is 16:9 (e.g. 1280x720).
The sizing of camera streams might not be optimal with a 4:3 video size (an additional black bar/stripe might be visible at the upper and lower edges of the screen).



See also How to Manage Cameras and Speakers.

IMPORTANT: While the Layout tab is active, the on-screen Camera controls are disabled.

Before saving personalized layouts, all media sources are displayed in the optimal layout for new rooms by default.

IMPORTANT: A layout is saved as part of the User’s settings, not as part of the Room’s setup. This means that, while there is no option to have someone set up a custom layout for a given room to be shared with everyone, each user will see their own custom setup, and they will not overwrite each other.

After upgrading to the current version of LearningSpace Single Room View ("NextGen Room View"), already existing Room layouts in the Legacy version of SRV are lost/reset.

Full-screen mode

  • The slider component at the bottom is available in full-screen mode.

  • The camera layout can be set to full-screen mode, not just a single media stream.

Media Section

Camera feeds and simulator-related media (CTG, waveform, and trendchart/patient monitor) are added to a room in the Media section. Media can be moved to and removed from the video layout - pinned or unpinned - by using the drag-and-drop or pin-to-layout functionalities. This way, only the selected media sources will be presented to the viewers.

CTG, waveform, and trendchart/patient monitor are displayed in separate windows.


Drag-and-drop

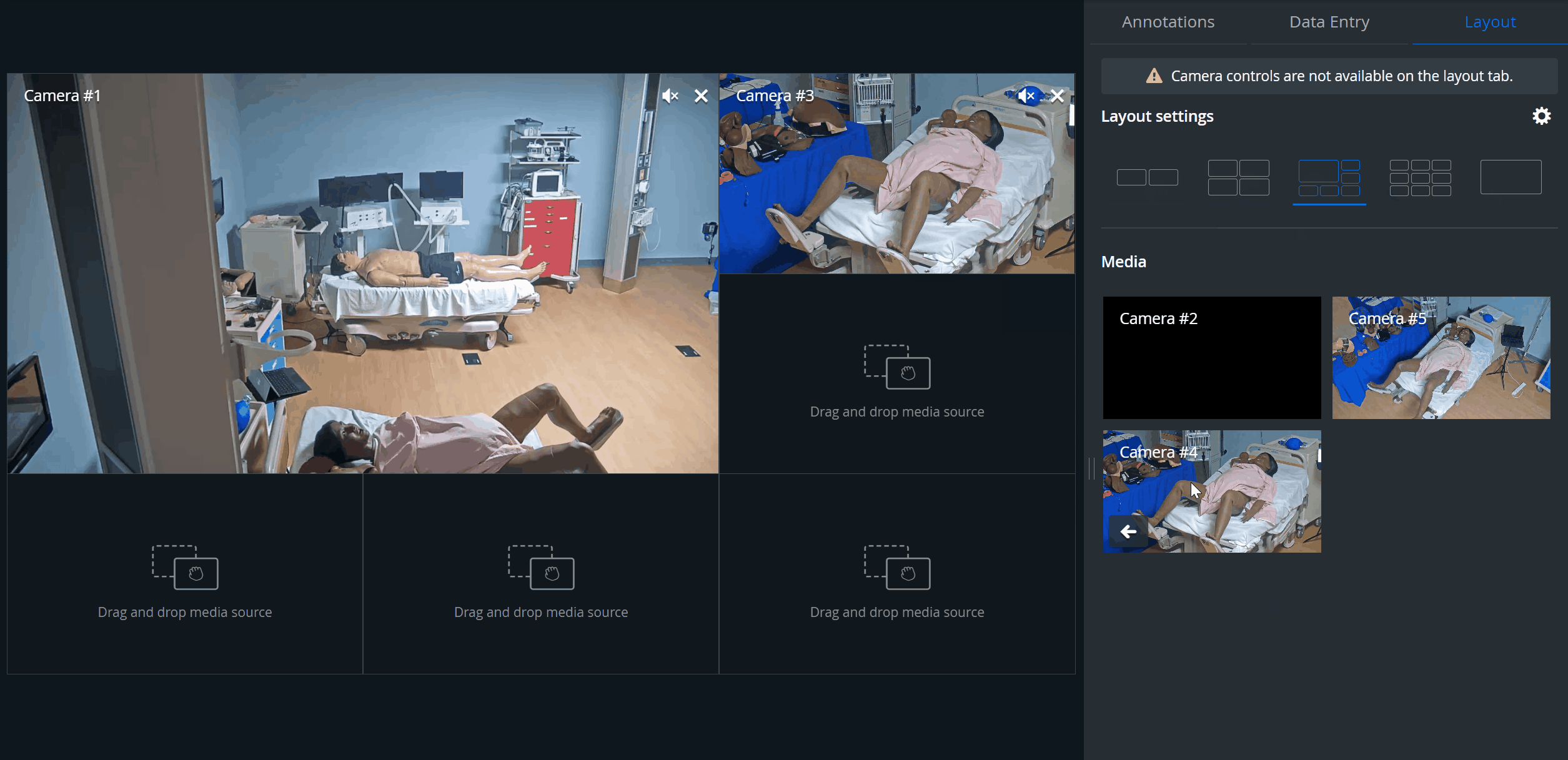

Media sources (camera feeds, physio apps) can be moved into the video layout or into the Media section as desired using the SRV's new drag-and-drop functionality.



Pin-to-Layout

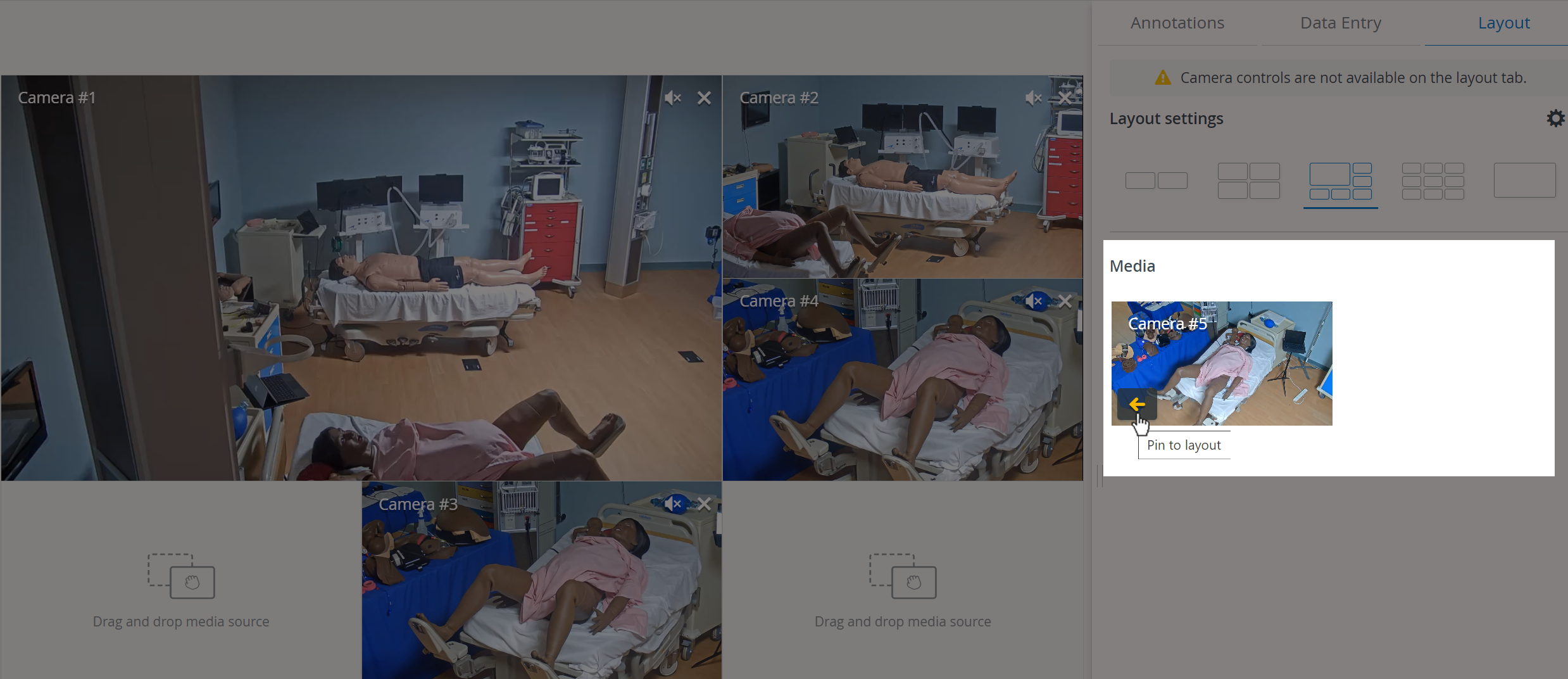

Media sources can also be "pinned" (moved) to the layout by clicking on the icon in the respective feed.




Media can be "unpinned"  - removed from the video layout and moved to the Media section - by clicking on the upper right corner of the camera/media pane.


IMPORTANT Note

By default, recording applies to all media - whether added to the video player section or not. This can be overwritten in the Recording setup section.

Picture-in-Picture

One desired camera feed or media source can be displayed in a focused way, while the rest of the media sources (a maximum of four) can be displayed in the corners of the video layout.
Media sources (camera feeds, physio apps) can be moved into the layout or the Media section as desired, using drag-and-drop or pin-to-layout.

The Picture-in-Picture toggle is only available in the single Layout view.





9-camera feed

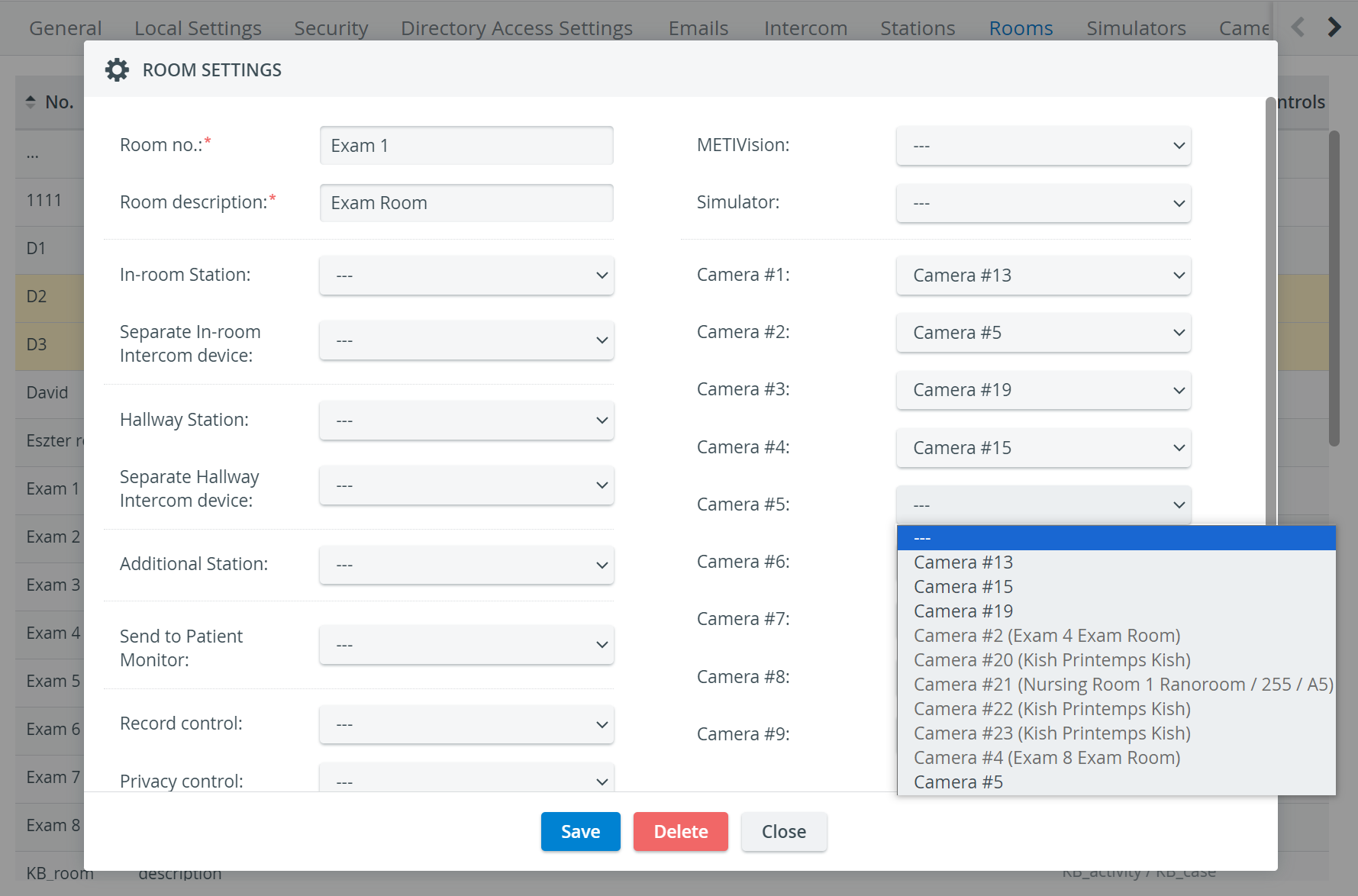

In the latest versions of LearningSpace,  #6, #7, #8, and #9, optional camera selector dropdowns have been added to the Room editor of the System manager.

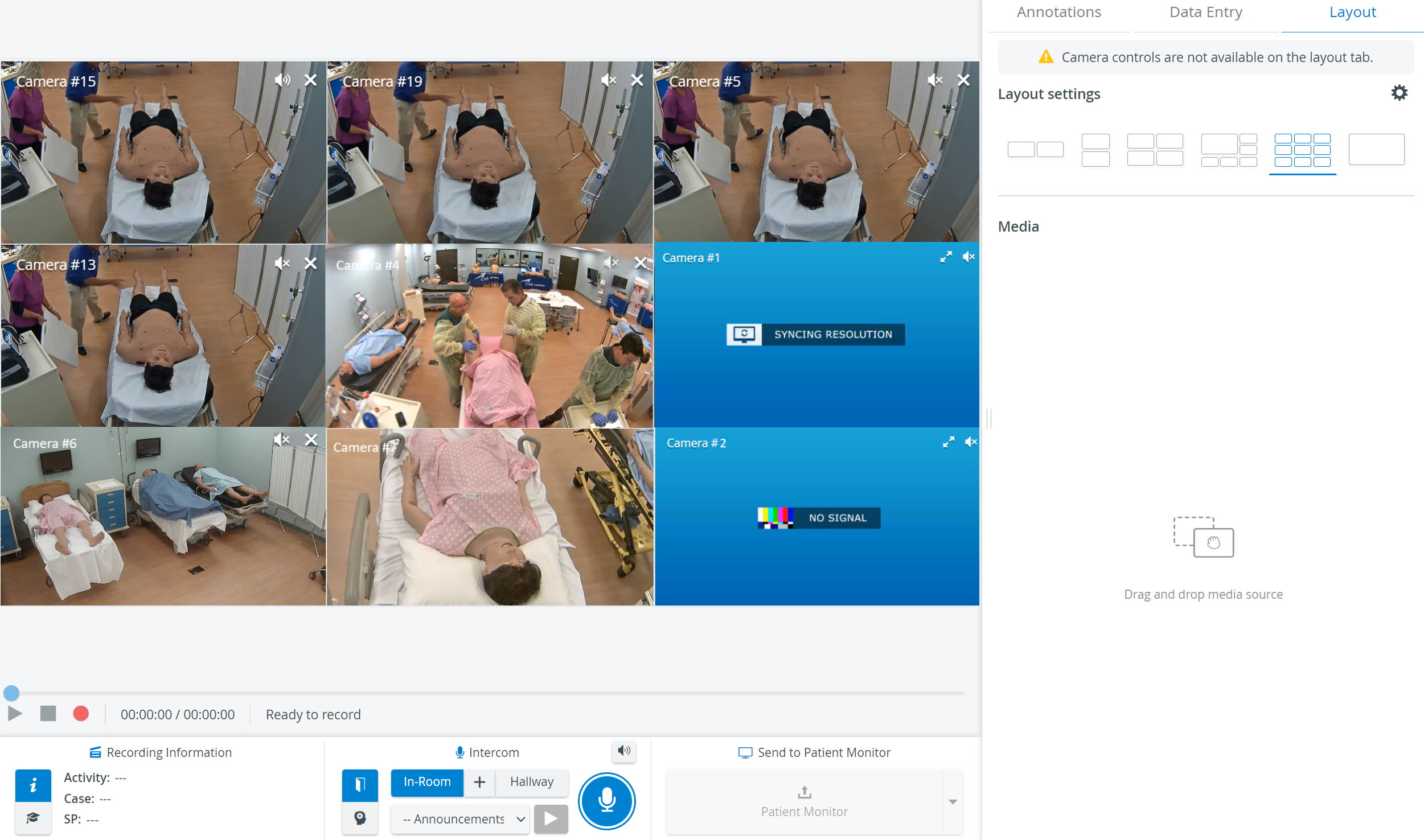

It only allows the Single Room View's (SRV) 3x3 layout to be used with camera feeds.





For more information, visit our Recording - How to pages and watch the Recording Module Training Video.
