How to use the HTTPS certificate request/upload tool
LearningSpace is a web application accessed by a web browser on the client's computers. To secure data between the LearningSpace system and the client's browser, encrypt otherwise unsecured HTTP traffic using strong SSL certificates, resulting in HTTPS traffic.
LearningSpace strongly recommends installing a valid SSL certificate. The securely encrypted HTTPS traffic will minimize the risks inherent to applications connected to the Internet.
See How can an SSL certificate be acquired?
Specifically, LearningSpace's Intercom functionality requires the web browser to access the client PC's microphone, which in turn requires a secure HTTPS connection to the LearningSpace server.
The end-user institution is responsible for providing the SSL certificate.
The HTTPS certificate request tool is a hideable tool - please reach out to LearningSpace Support to have it enabled on your system
(ls-support@elevatehealth.net)or Live Chat - more contact details available in the Customer Aftercare One-Pager)
If not enabled, the "legacy" version of the 'SSL/HTTPS SECURE ACCESS SETUP' will be available on the System Manager's Security tab (see image below).
For more information, read How can an SSL certificate be acquired?
Process of requesting/uploading a certificate
Navigate to System Manager, Security tab, SSL/HTTPS SECURE ACCESS SETUP.
Available to System Manager or Admin-privileged users only.
Two options are available here: Request Certificate and Upload Certificate.
As the first step of the HTTPS configuration process, select from the following two scenarios:
You do not have a certificate or a key → proceed to Request Certificate
You have your own SSL certificate and a private key → proceed to Upload Certificate
Request Certificate
By selecting the Request Certificate option, you will follow five steps to request a certificate. The main components are:
Brief - information about these steps
Data Input - empty fields to fill in with the necessary data (Country Name, State or Province Name, Locality Name, Organization Name, Organization Unit Name, Common Name, Email Address)
Download Certificate - a generated certificate that includes the above data
Upload Signed Certificate—This option allows you to upload a certificate signed by a Certificate Authority. You can also upload intermediate certs, and you can validate the hostname here as well.
Activation - data can be verified once again before activating the certificate

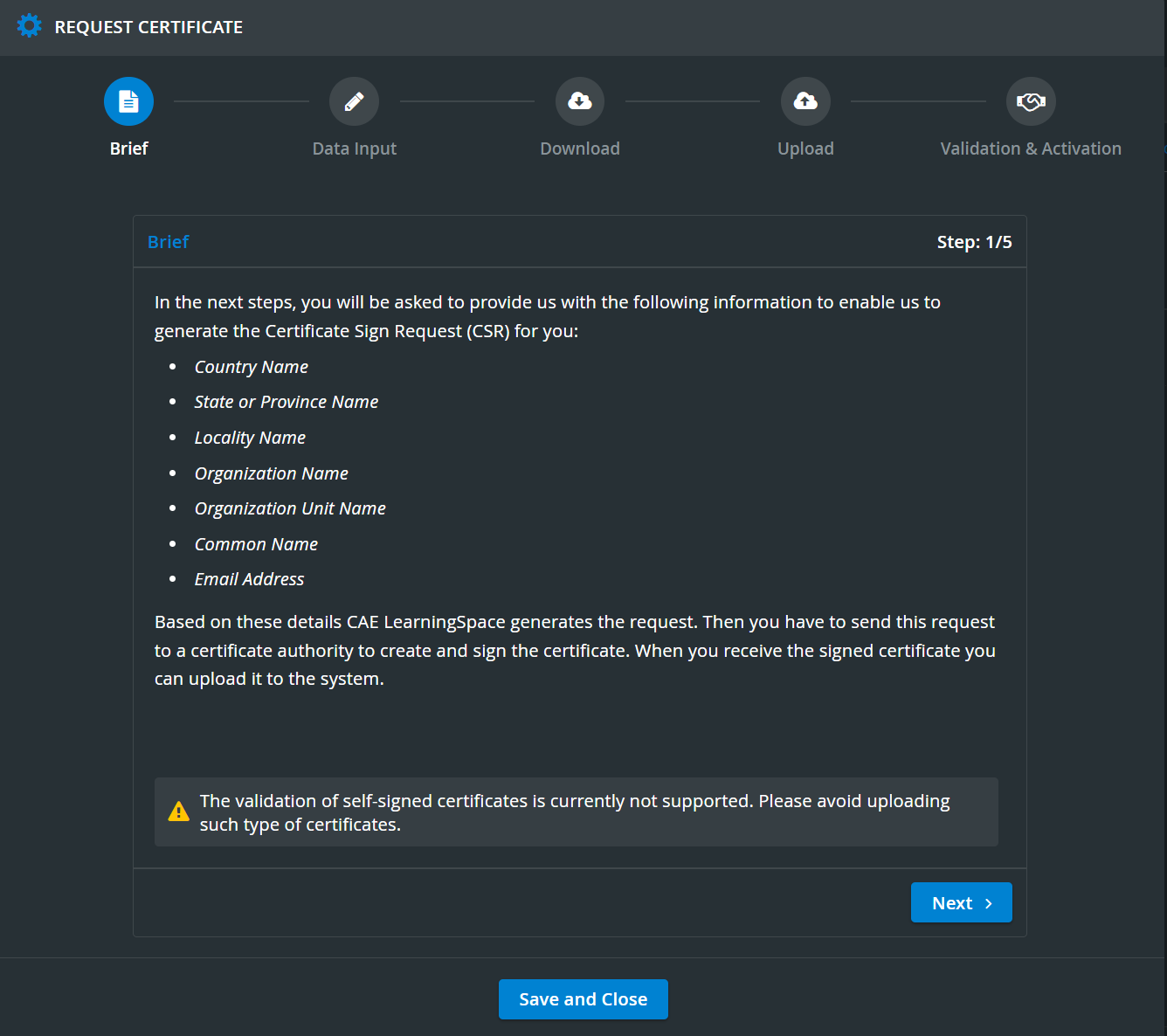

Brief
This component describes what will happen in the next steps.

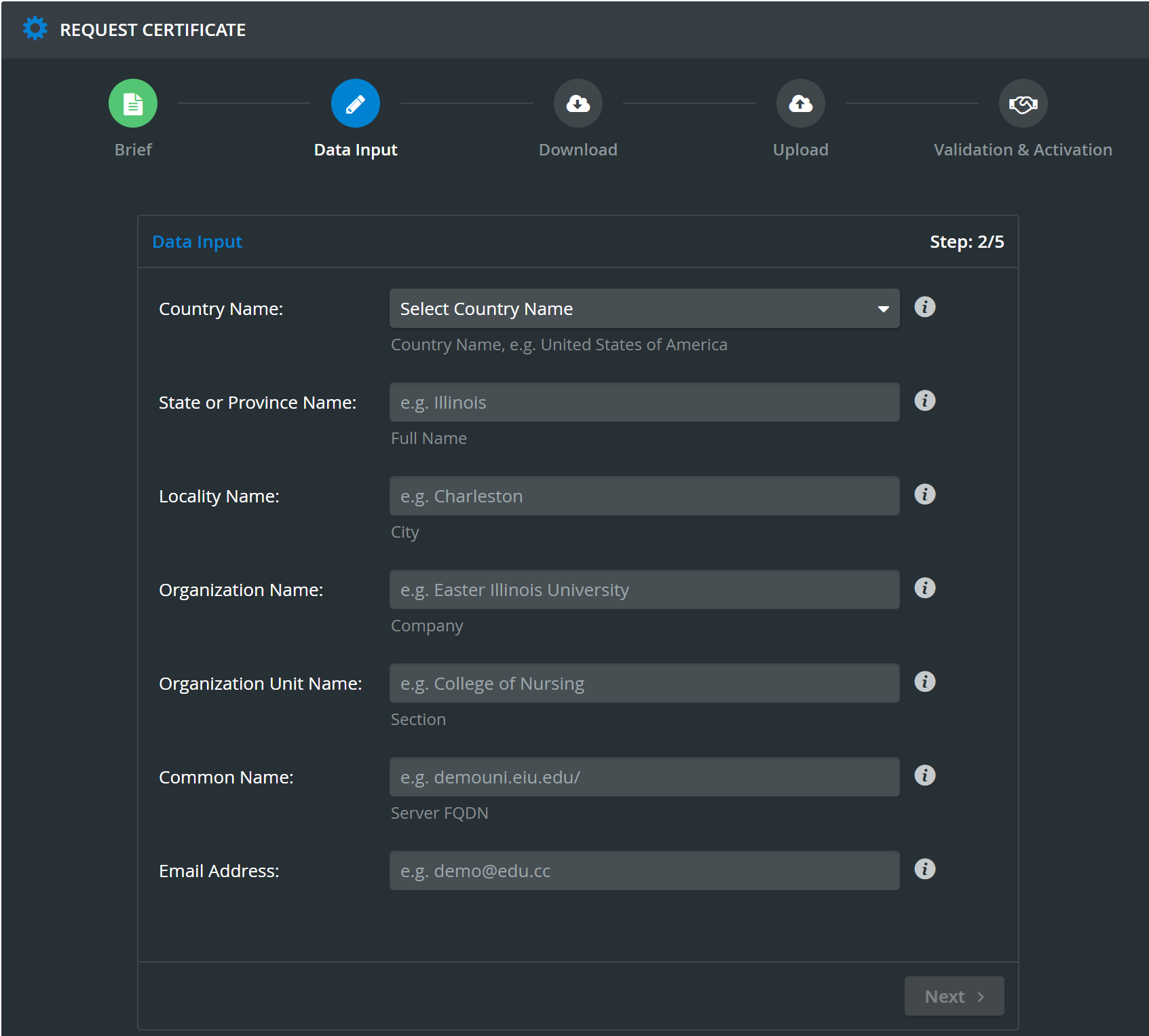

Data Input

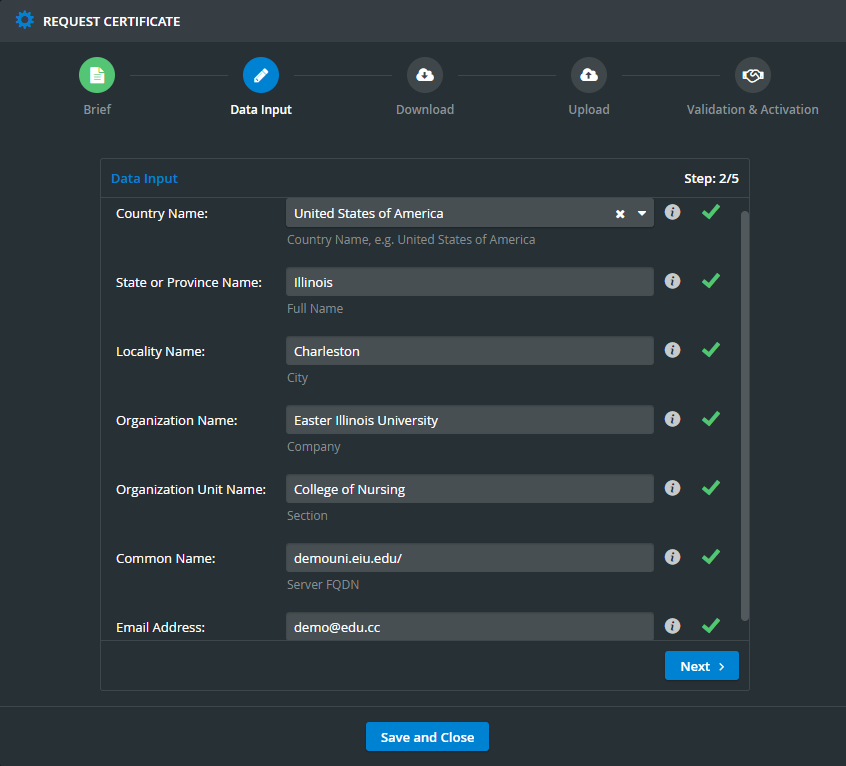

As the second step, fill in the fields with the required information.
The first field is a dropdown menu populated with country names.
The next five fields must be filled in accordingly (minimum character limit is 1, no maximum character limit).
The last field (Email Address) must be filled correctly, with any of the following formats: test@mail or test@mail.com.
Information tips will help you fill these fields by hovering over the info icon.

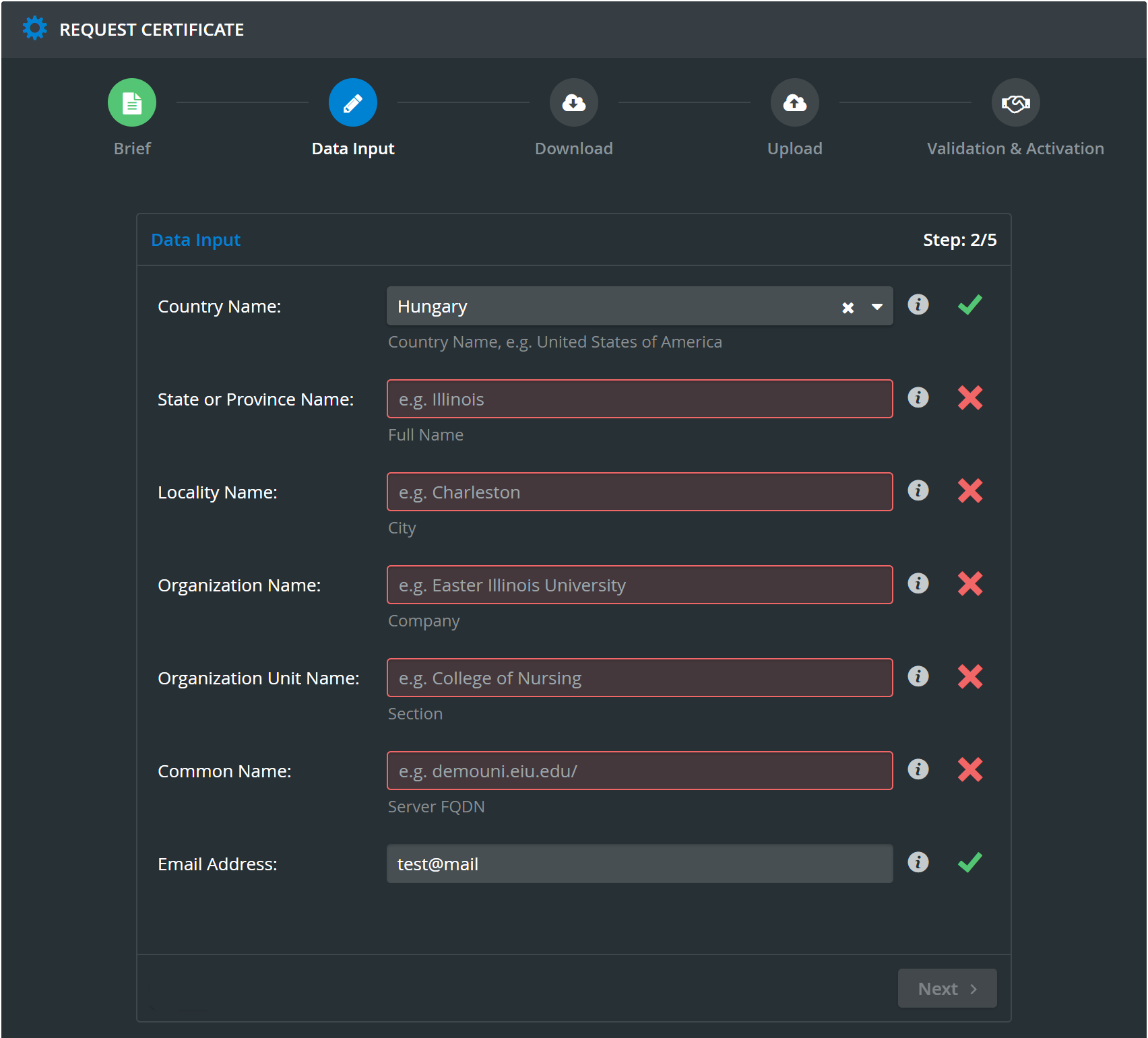

If you don't fill in all fields or leave one incomplete, the Next button stays inactive.
Once you add all data correctly, green checkmarks show completion, and the Next button becomes active.

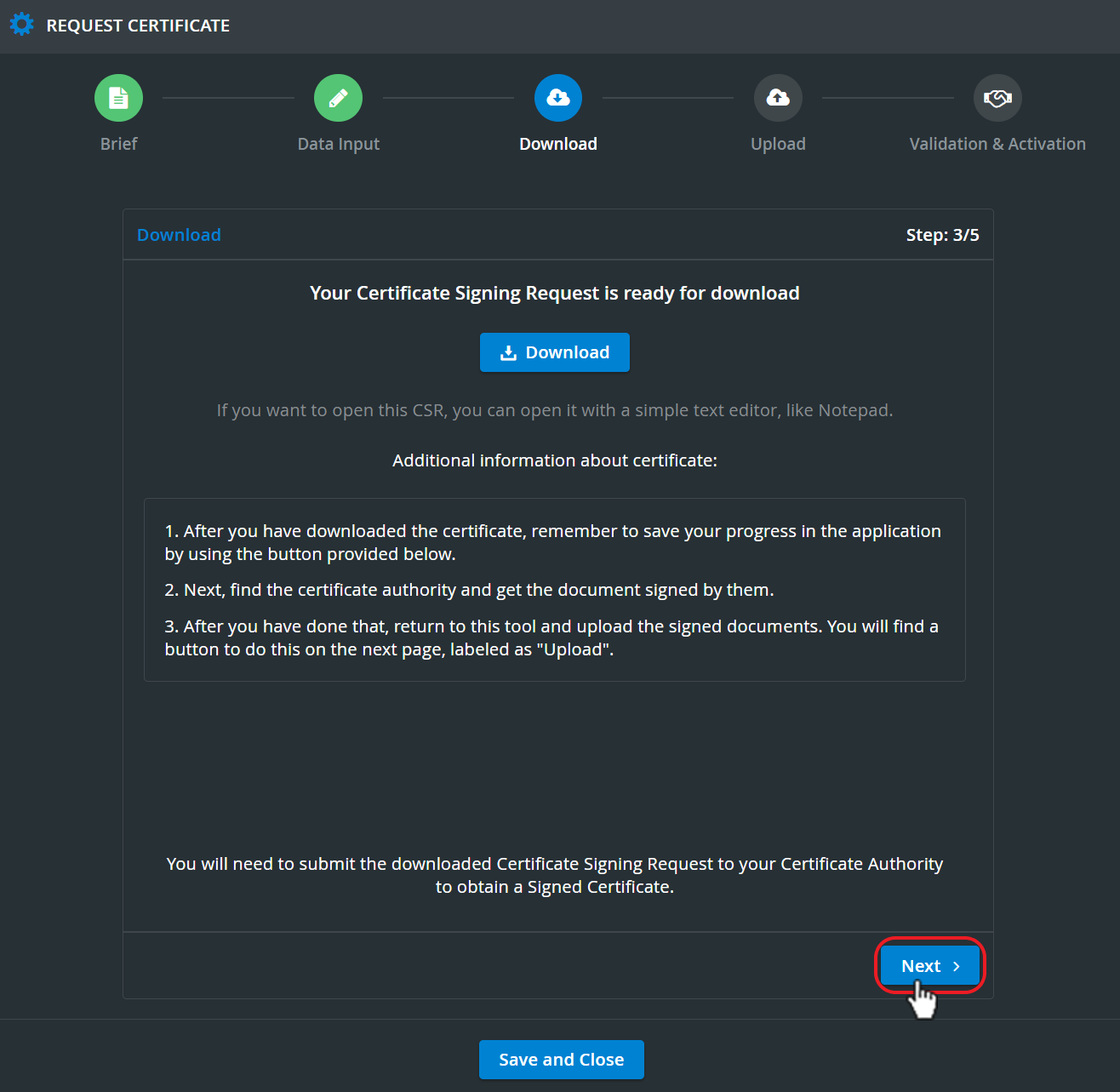

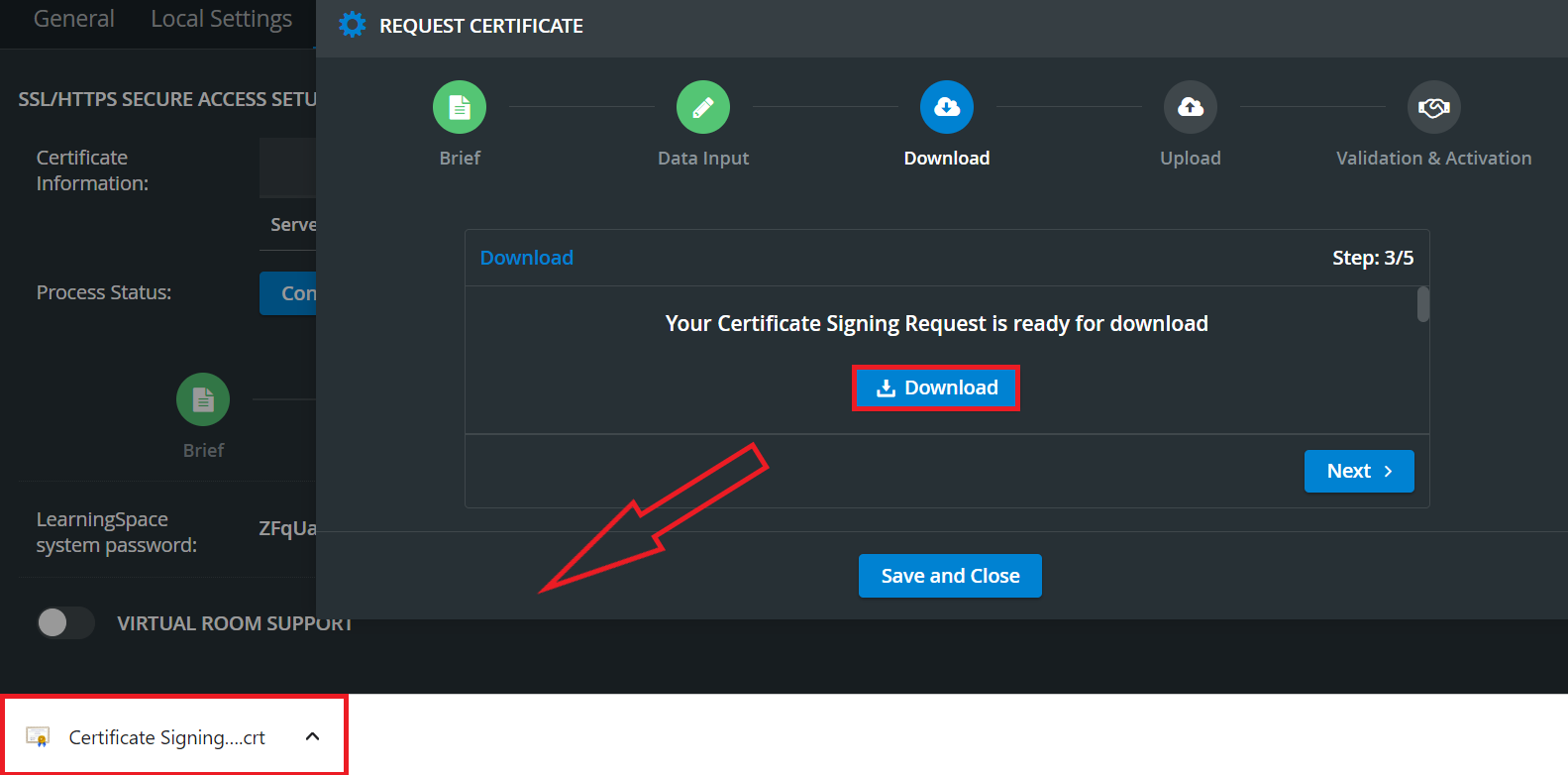

Download Certificate
You can download the certificate here; it is pre-filled with the previously entered data.
Once you have clicked Download at least once, the Next button will become active.
Hit the Next button to proceed to the Upload Signed Certificate step.
Validating Certificate by a Certificate Authority
Submit the downloaded Certificate Signing Request (CSR) to a Certificate Authority (CA) for signing. Once validated and signed, you can upload the Signed Certificate into your LearningSpace system.

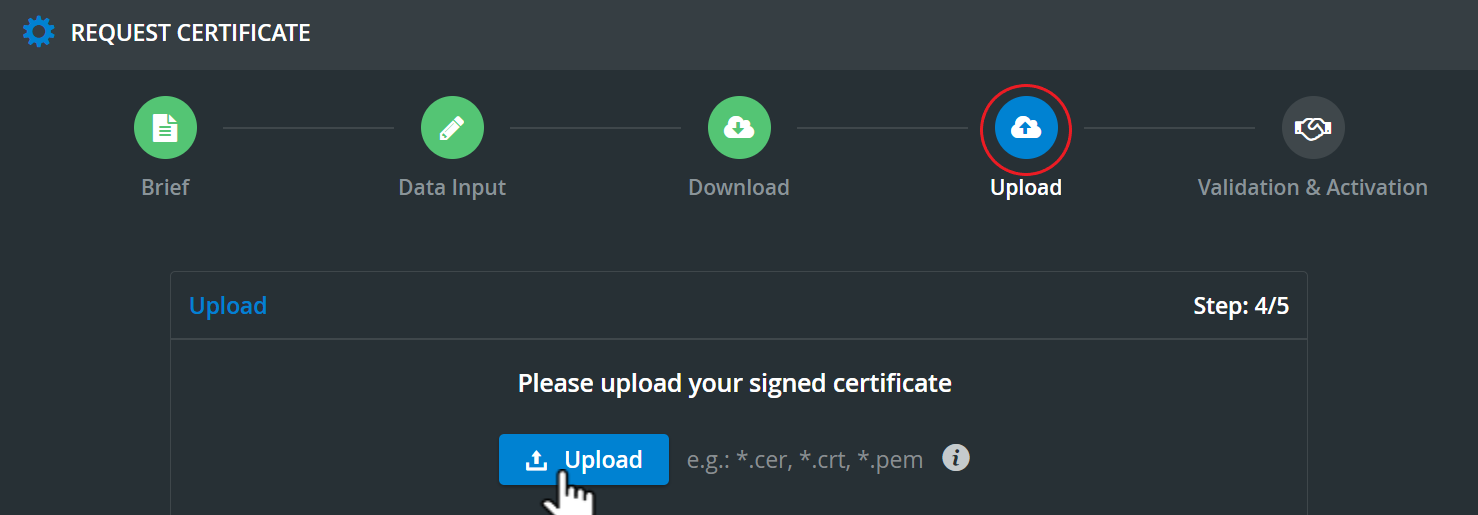

Upload Signed Certificate
This step allows you to upload the *.crt file downloaded in the previous step (or *.cer/*.pem files) signed by a Certificate Authority.
*p7b, *p12, *.der format files are not supported in LearningSpace.
LearningSpace currently does not support self-signed certificates. The notification message below warns you about this. Read more about Self-signed certificates further below*.
Press the Upload button and select the certificate file to be uploaded.
Hover over the info icon to get more information.
The validation starts automatically: 'Validating' and a loading circle will be visible.
Once validation finishes, the two outputs can be 'validated' or 'invalid'.
An invalid cert returns with the script 'Invalid' and a red cross.
The valid cert returns with the script 'Validated' and a green checkmark.
Whenever you restart a request, the newly generated certificate must be signed by the CA; you cannot reuse the one from the terminated process. |
If the certificate is a wildcard, you can test the hostname. (After the test, you still need to complete the chain.)
You cannot test the hostname if the certificate is not a wildcard. (You still need a complete chain.)
In special cases, you can also upload intermediate certificate(s) (maximum limit: 5).
You can upload (and delete, if needed) multiple intermediate certificates individually, in the correct order.
Invalid intermediate certificates can be deleted by using the red dustbin icon, and then, a new intermediate certificate can be uploaded.
Activation

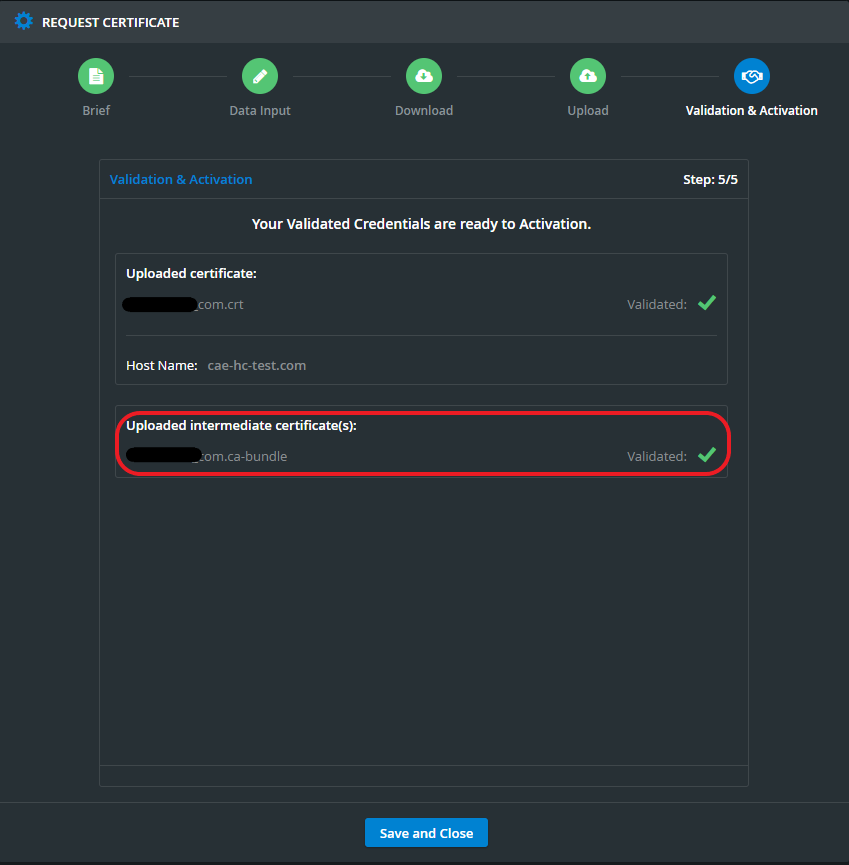

All previously uploaded files are collected in the activation component and summarized here.

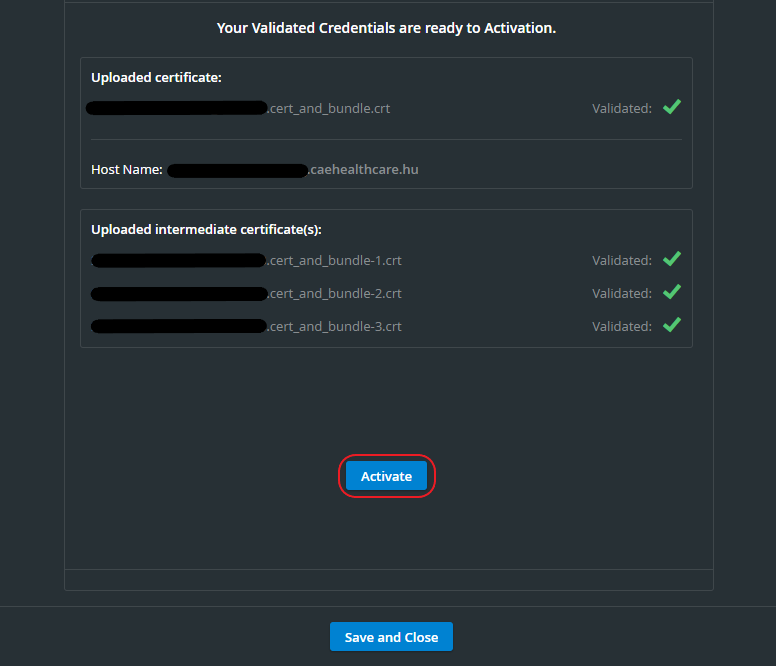

Here, you can activate your certificate by pressing the Activate button.
Pressing the Activate button activates the certificate. A confirmation window will pop up with two options:
If you press the Activate button, the validation/activation process will be started:
Press Cancel to cancel the process.
Once the cert has been activated, a completed component will appear stating that you have successfully validated and activated your certificate.
If certification validation and activation fail, restart the process or contact the Support team.
The Save and Close button closes the confirmation window.
Upload Certificate
The second option under 'SSL/HTTPS SECURE ACCESS SETUP' is the Upload Certificate button, where an existing certificate can be uploaded in 3 steps.
Upload Signed Certificate (same procedure as the Request Certificate upload step)
Upload Key - The key can be uploaded and matched
Activation (same procedure as the Request Certificate activation step, but has an extra check, which is the uploaded key)
LearningSpace currently does not support self-signed certificates. If you try to upload this type of certificate, the notification message below warns you. Read more about Self-signed certificates below*.

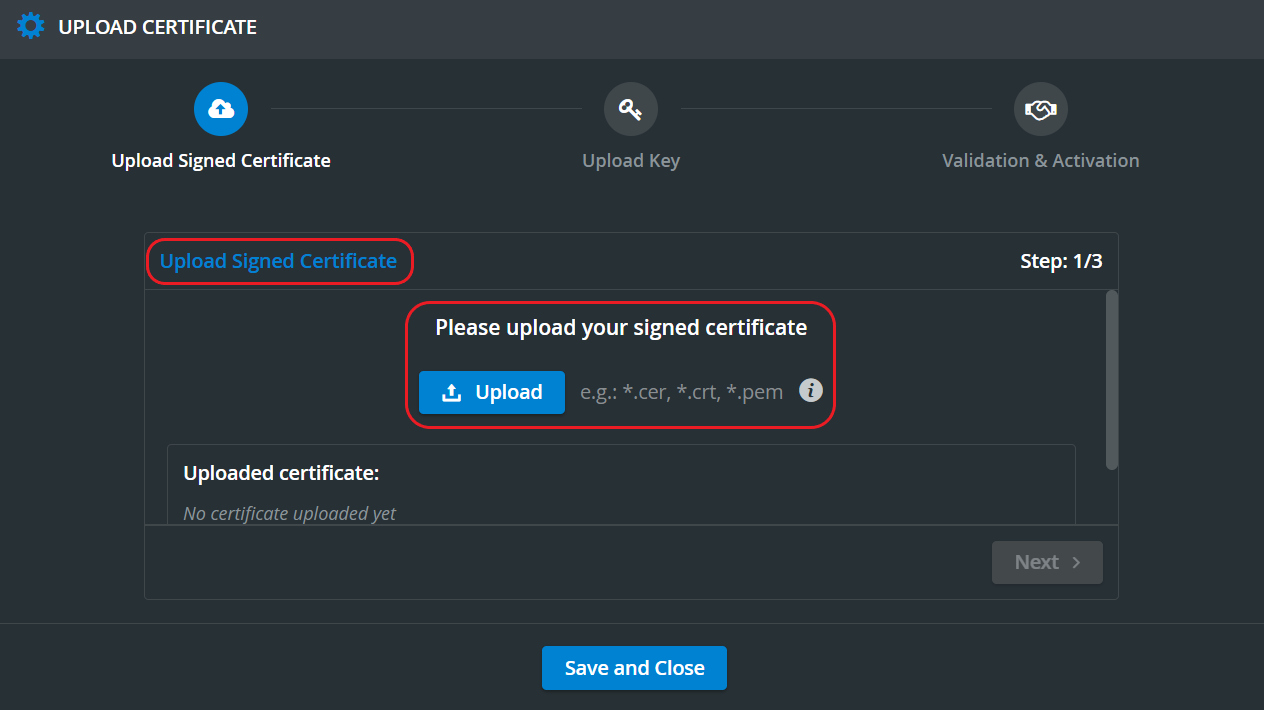

Upload Signed Certificate
As the first step here, press the Upload button and select the certificate file to be uploaded:
Hover over the info icon to get more information.

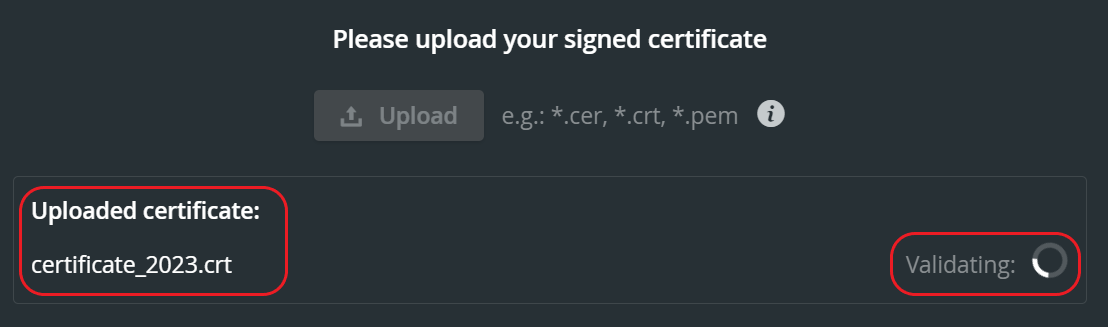

A validation process will start along with the upload:
If the certificate upload is invalid, you can delete the certificate using the dustbin icon.
If validation fails repeatedly, terminate the process and restart it.
Once a certificate has been validated, enter the Host Name and hit the Validate button:
Validating certificate’s hostname:
The uploaded certificate’s hostname is invalid:
The uploaded certificate’s hostname is valid:

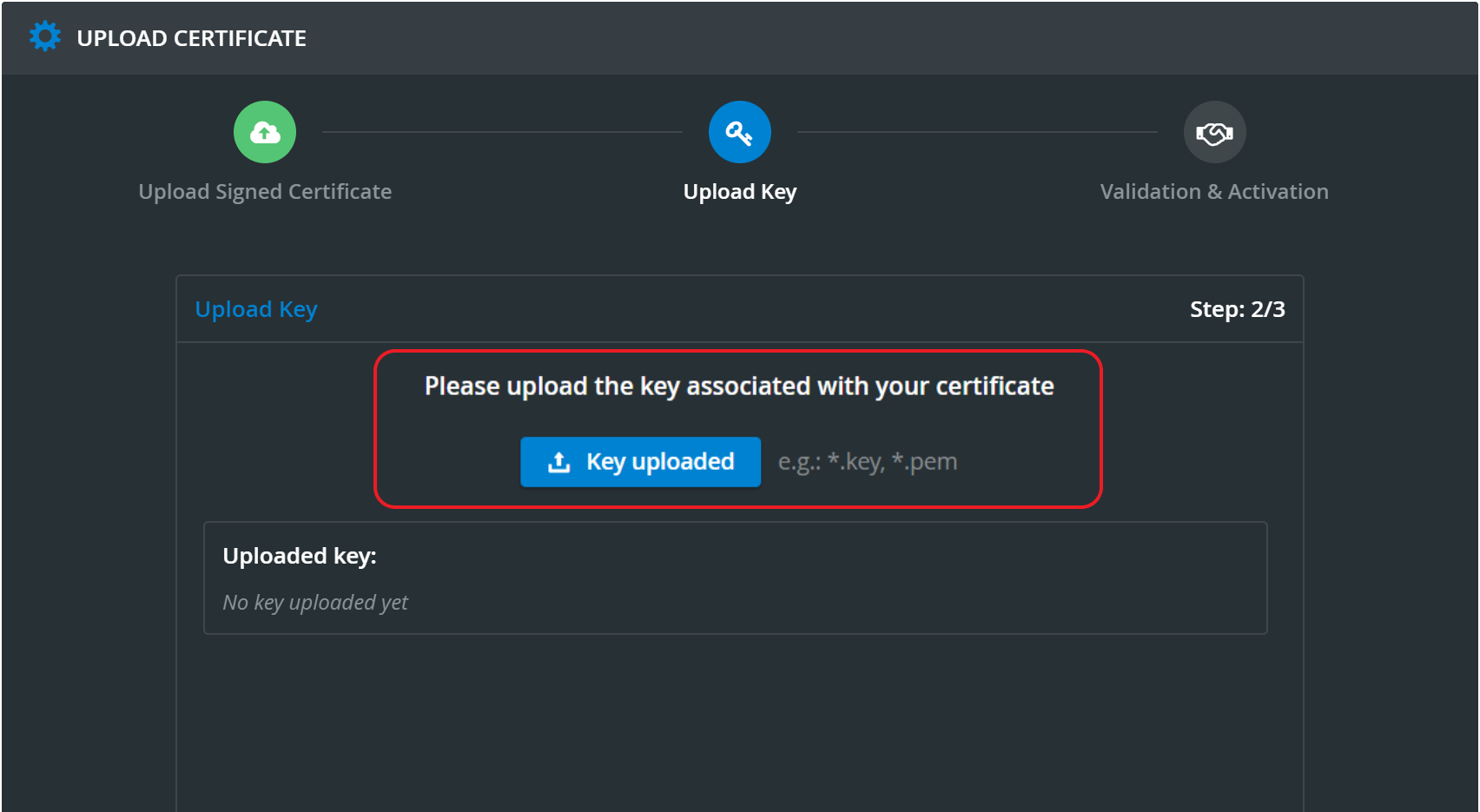

Upload Key
The option to upload the key for your certificate, which must correspond to certain things:
The file extension can be .key or .pem
The file size cannot be larger than 1MB
The upload button becomes inactive after the file upload is successful.

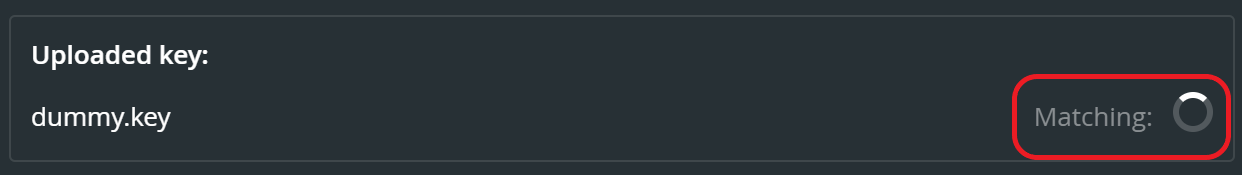

In the background, a validation process ('Matching') runs.

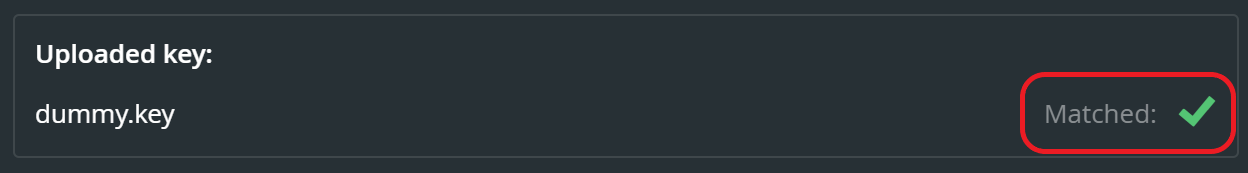

If the uploaded key is correct, it will be displayed as 'Matched'.
If an Unmatched key is uploaded, you can delete it using the dustbin icon. If matching fails repeatedly, terminate the process and restart it.

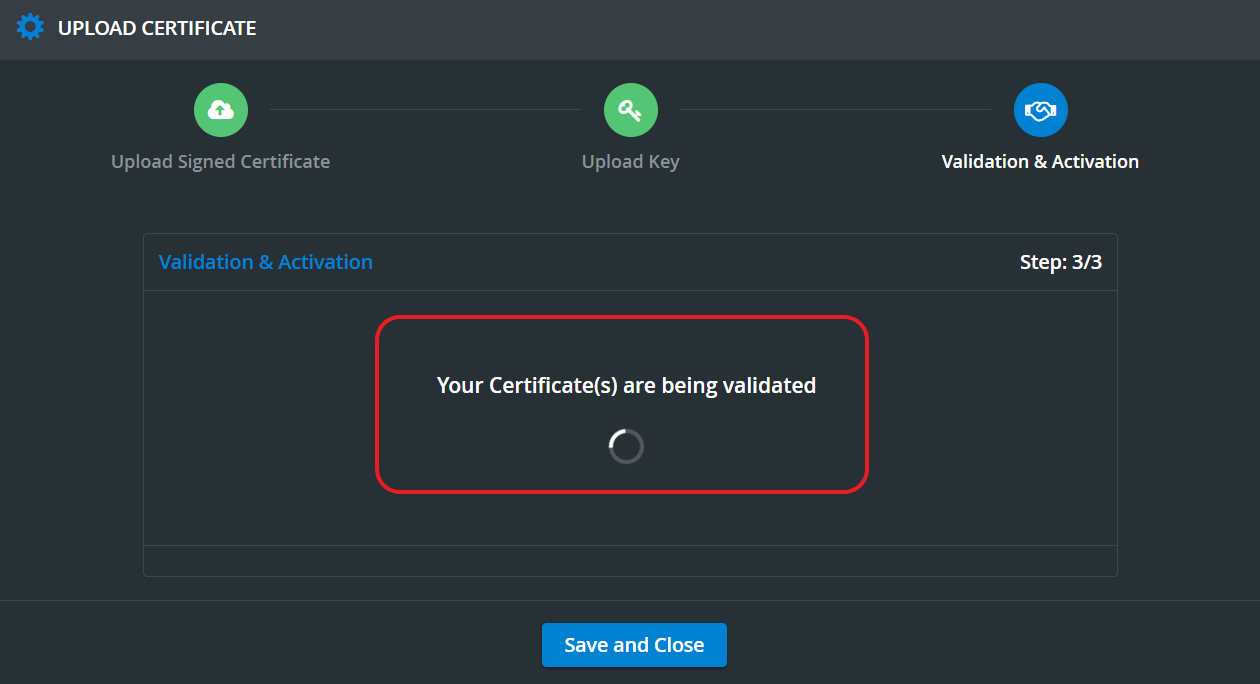

Activation
This component looks the same as the certificate request. The only difference is an extra section for uploading the key.
In case of failed activation, the following error message is displayed:
If certification validation and activation fail, restart the process or contact the Support team.

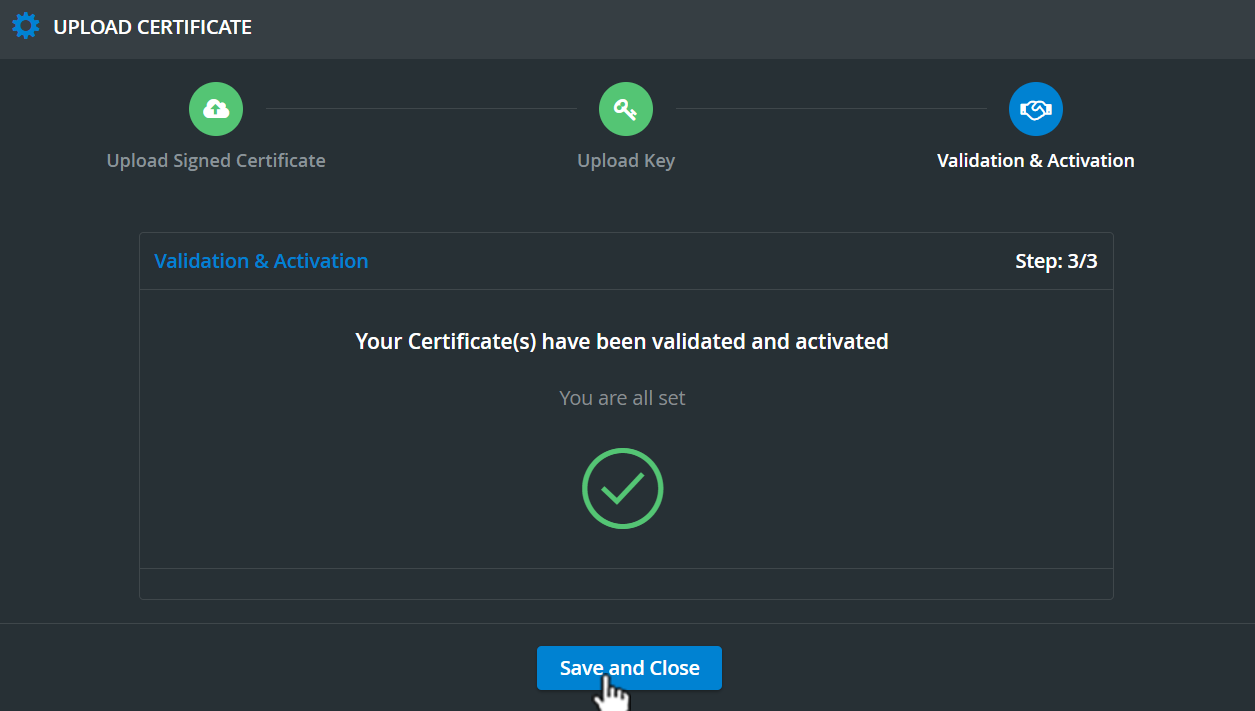

Once the cert has successfully been activated, the following message appears in the pop-up:
The process has successfully been completed. Press the Save and Close button.
Additional Components
Status Table

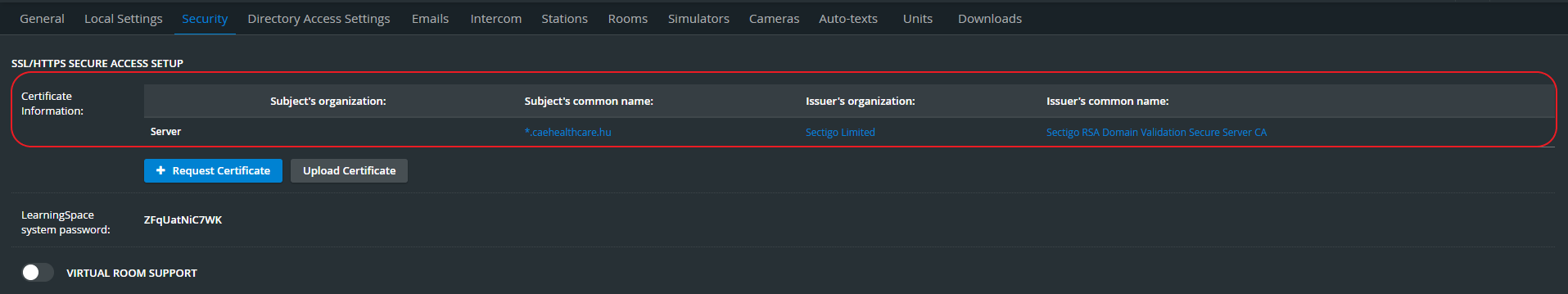

The table under 'SSL/HTTPS SECURE ACCESS SETUP': Certificate Information contains all certificate data.

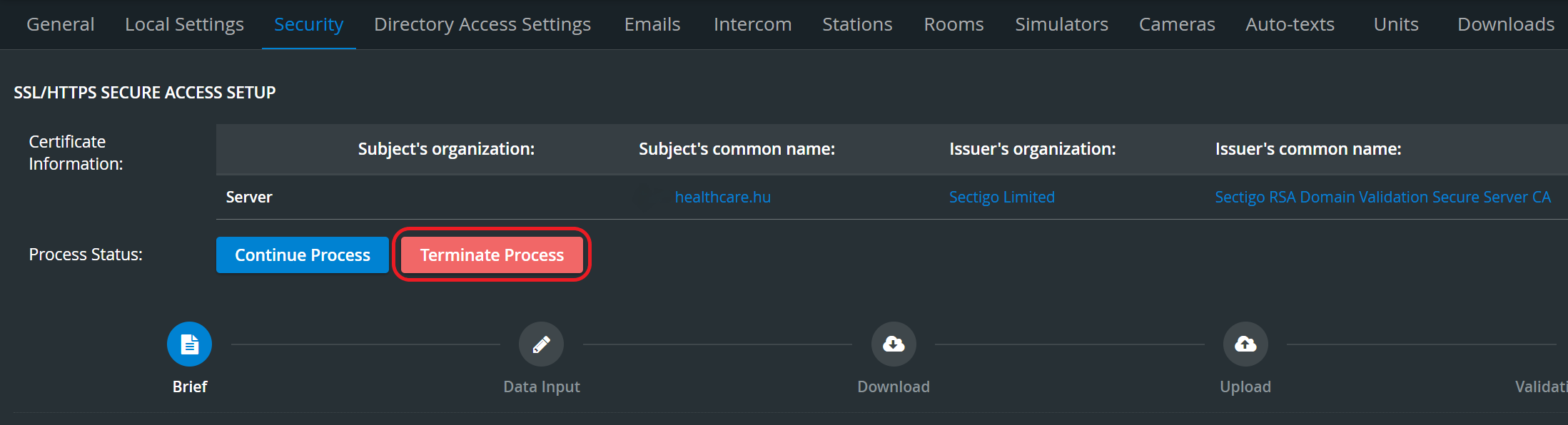

Continue / Terminate Process Button
The above-described process can be terminated at any point with the Terminate Process button (after closing the pop-up with Save and Close).
If interrupted or paused, you can continue the process with the Continue Process button.
Confirm termination:
After HTTPS is properly configured for your LearningSpace system, the above multi-step wizard process can be re-initiated at any time (e.g., when the certificate expires).
Restarting the process does not affect the existing HTTPS config or disrupt day-to-day work in LearningSpace.

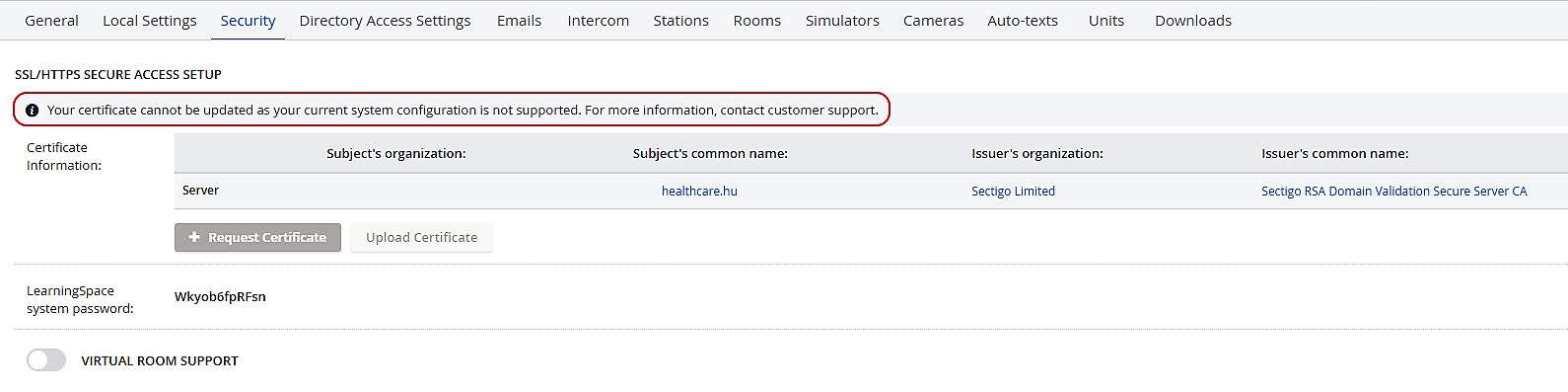

If you see the message below, you cannot upload or request a certificate since several servers are connected to your LearningSpace system. Please contact your System Administrator or the Support team.

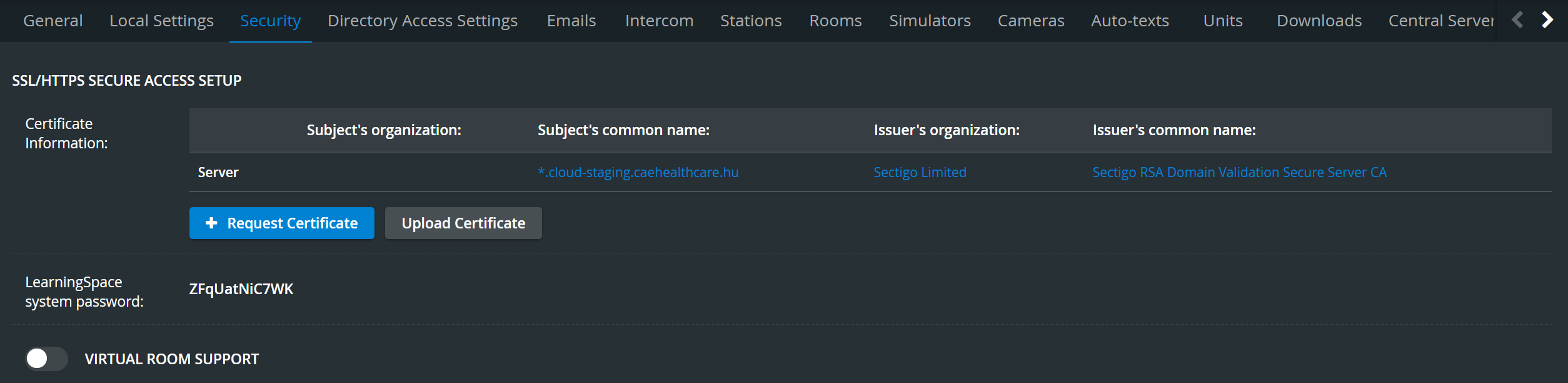

Certificate Expiration Date
The certification expiration date is displayed in the ‘Expires on’ column.
About Self-signed certificates*
When using self-signed certificates on client computers, the clients will not trust the certificate by default as it is not issued by a trusted Certificate Authority (CA). Therefore, clients typically see security warnings or errors when accessing a website or service that uses a self-signed certificate.
To avoid these warnings and errors, clients can manually trust the self-signed certificate by importing it into their trusted root certificate store. This process varies depending on the operating system and browser being used.
It is important to note that while self-signed certificates can provide encryption for network traffic, they do not provide the same level of assurance as certificates issued by trusted CAs. Self-signed certificates can be easily created by anyone and do not go through the rigorous validation processes that trusted CA certificates go through.
Learn more on our System Manager pages.
