How to Use a Joystick for PTZ Functions

In LearningSpace’s Single Room View within the Recording module, PTZ cameras can be selected for joystick-driven operation.

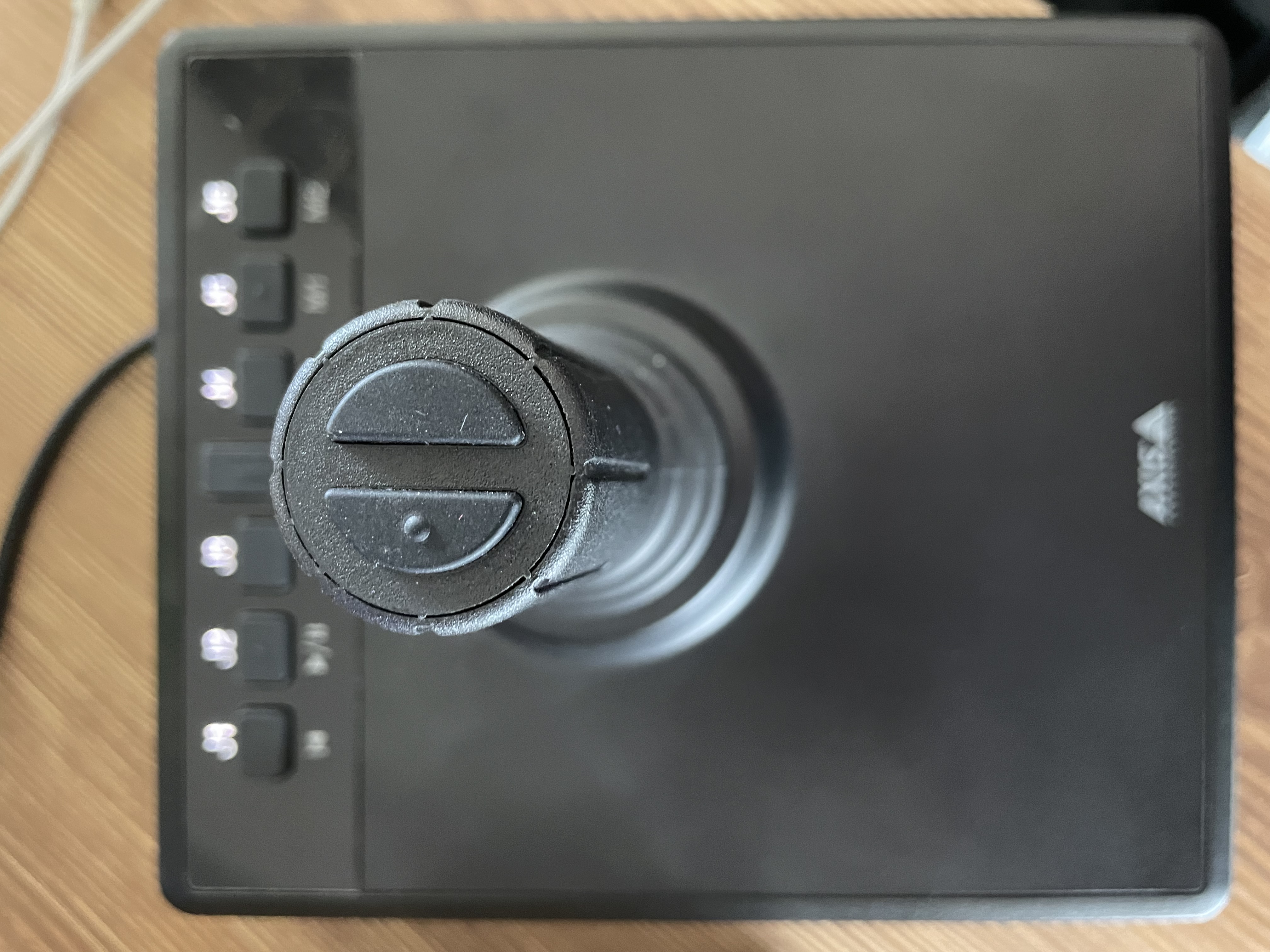

AXIS TU9002 Joystick

AXIS TU9002 Joystick

1. Plug in the joystick.

2. Go to the Single Room View of the Recording module.

3. The joystick is detected automatically.

4. When a button on the joystick is pressed, the corresponding camera is selected and marked with a yellow frame.

5. The camera will follow the PTZ operation of the joystick (continuous pan, tilt, zoom).

   Continuous operation means the camera will not be repositioned in increments but will be repositioned continuously.

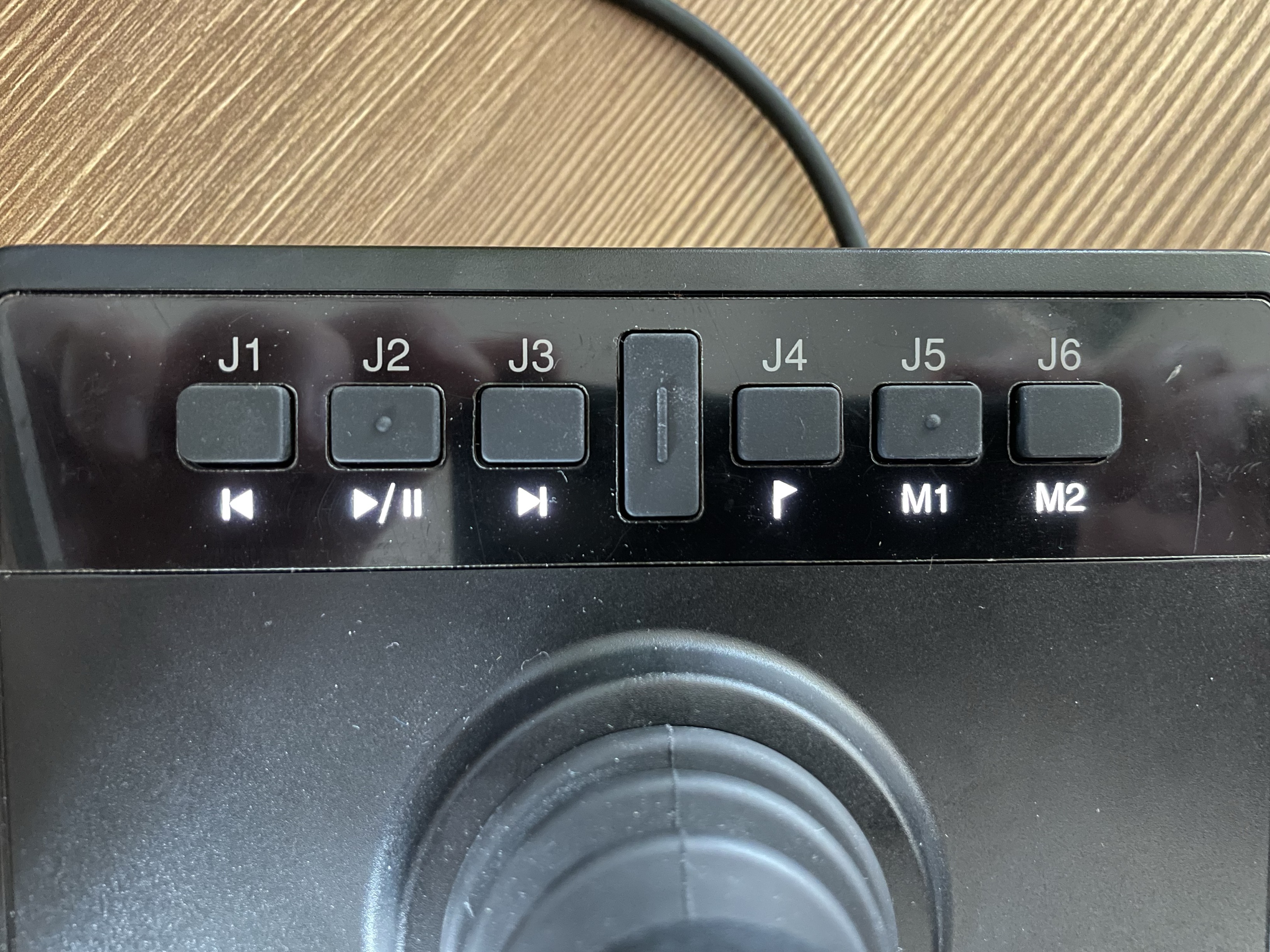

6. Use joystick buttons J1-J2-J3-J4-J5-J6-J7-J8-J9 to select the camera for PTZ.

   Button numbering corresponds to window numbering.

   The “toggle” button in the middle switches between the 2 button lines. The active button line will light up white.

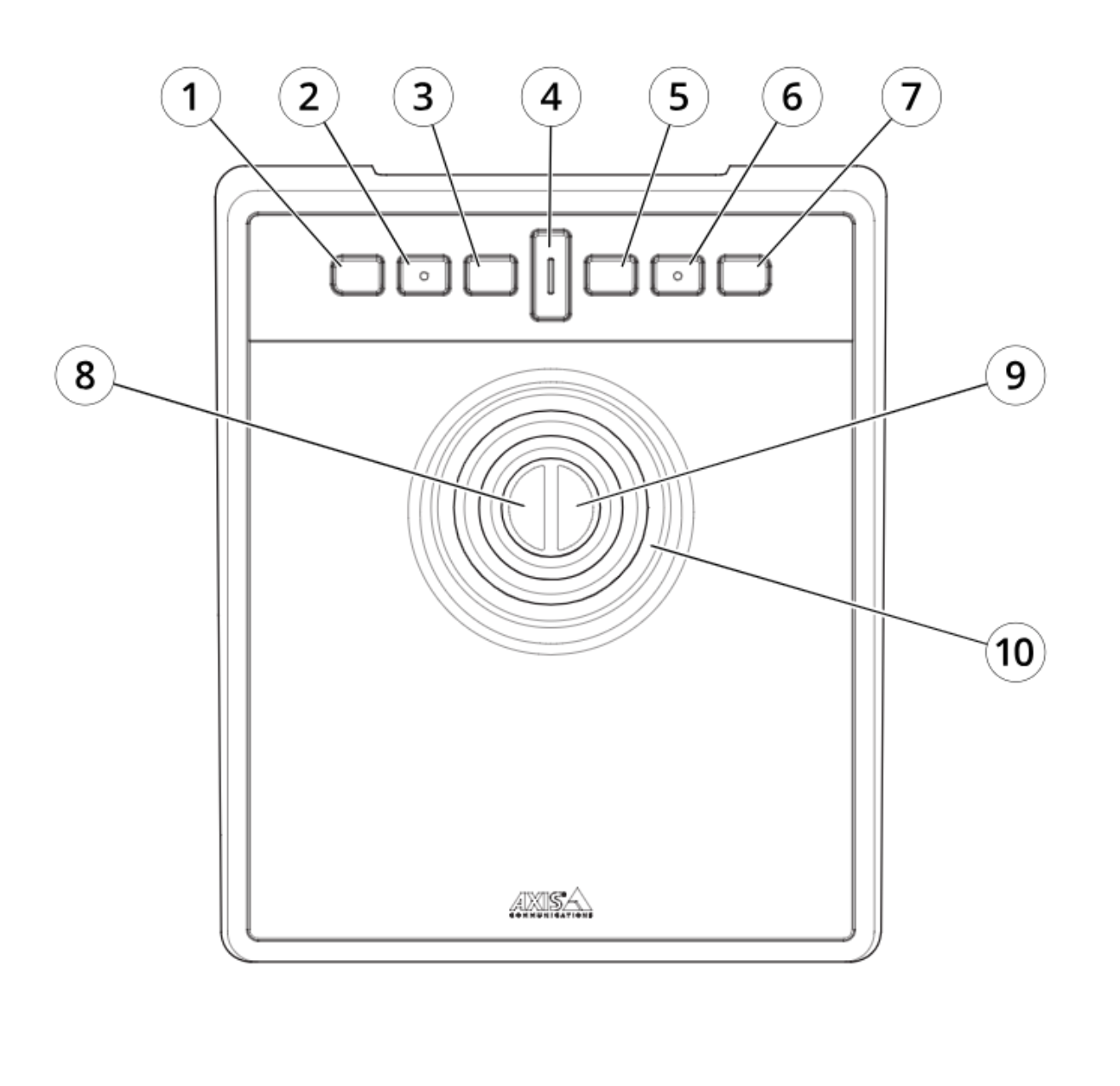

   AXIS TU9002







   1. J1 or J7 button

   2. J2 or J8 button

   3. J3 or J9 button

   4. Toggle button

   5. J4 or bookmark button

   6. J5 or M1 button

   7. J6 or M2 button

   8. Left joystick button

   9. Right joystick button

   10. Joystick




   ⚠️ In LearningSpace, the play/pause / forward / rewind functions are unavailable.

   Instead, we have “J7 J8, J9” buttons with which we can select the corresponding 7th, 8th and 9th camera windows.




   If a button relates to a non-PTZ-capable camera, nothing happens; a warning message is shown.
























7. PTZ-capable cameras can be switched with the Left / Right buttons (on top of the stick)

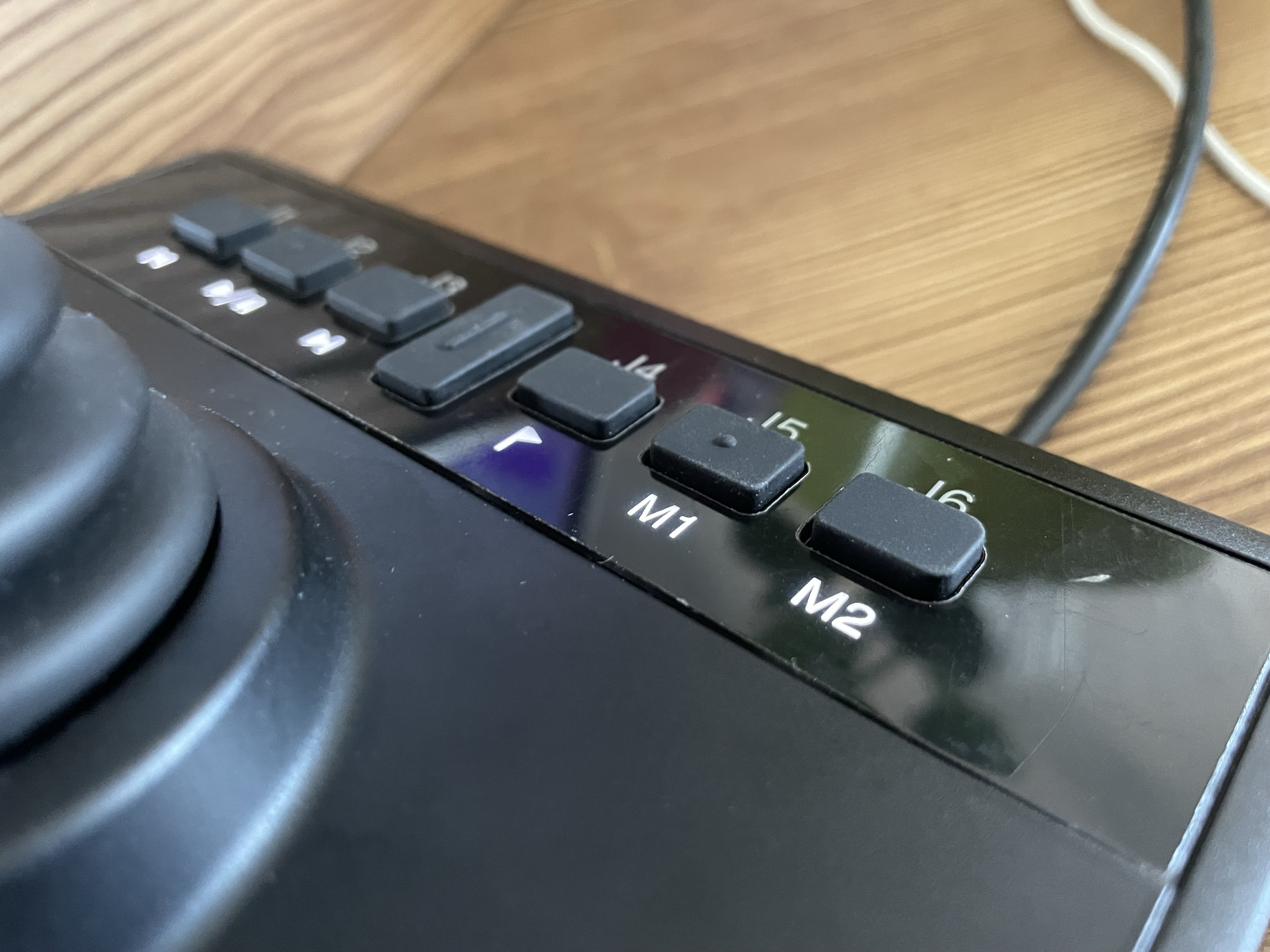

8. Precise control: With the toggle button, we can press M1/M2.

   1. By default, precise control is disabled, resulting in faster camera movements.

   2. M1 button: the precise control will be enabled (slower movements can be performed)

   3. M2 button: the precise control will be disabled.

      Corresponding information messages are shown. (Precise control enabled / Precise control disabled)

9. (optionally) for low-delay video output to a dedicated monitor:

   1. When entering the SRV, the decoder will show the first PTZ-capable camera image on the connected monitor.

   2. When PTZ-ing the camera, the monitor will present the camera movement as expected, but with a lower delay (~400 milliseconds) than SRV in the browser (~0.8-1.5 seconds).

   3. When selecting another PTZ camera, the decoder will switch to that source and display it on the monitor.

      Only Axis cameras are displayable via the decoder.




Axis T8311 Joystick

In Single Room View, the first PTZ camera will be selected for joystick-driven operation, and the connection is indicated by the camera panel header turning yellow.

1. Once the joystick is plugged in, check whether the system has detected it.

2. Enter the Single Room View for the desired room.

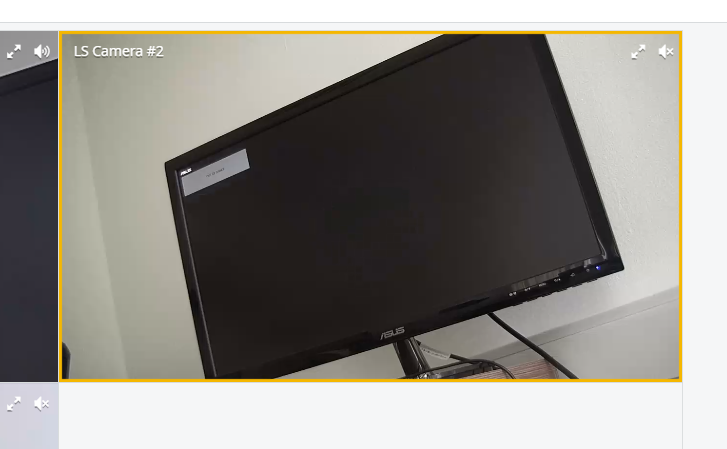

NOTE: If none of the camera panels switch to yellow (as shown below), press any joystick buttons.

3. J1-J2-J3-J4 buttons will select the the first 1-2-3-4 camera window. If the layout changes, it’ll be immediately consistent with the buttons, too.
If the specific camera is not PTZ-capable, we receive a warning message (the same as for the new joystick).

4. Push the stick right or left to move it horizontally (panning).
For a vertical change of position (tilting), push it forward or pull it back.
Zooming in is done by turning the knob to the right, while turning it to the left zooms out.

5. Press any other button on the joystick to adjust another PTZ camera.
