How to Save PTZ Camera Preset Positions in Single Room View

Important Note for Enterprise Lite Users

This feature is for use with in-campus audiovisual (AV) inputs. Hence, it is not available for LearningSpace Enterprise Lite, which is only used for web-conferencing-based virtual simulation encounters. To unlock this feature, please upgrade to the LearningSpace Enterprise solution.


You can save the positions of the pan-tilt-zoom (PTZ) cameras installed in your simulation rooms.
After entering Single Room View (SRV), each PTZ camera's live stream control panel allows you to set up PTZ presets.

Saving PTZ Presets

Control Tools

To access PTZ tools, click on the respective icons in the lower right corner of the live stream panel.

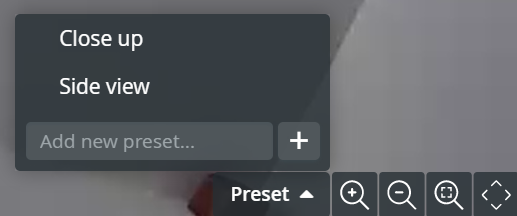

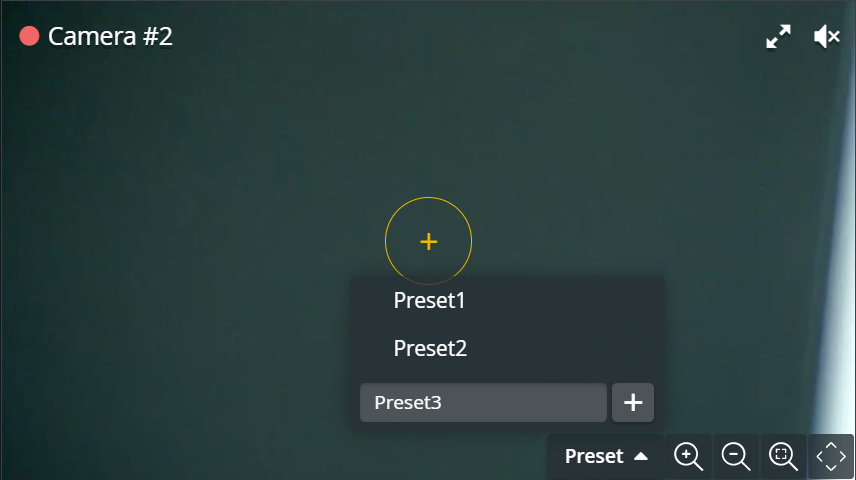

After positioning your PTZ camera, save the current position as a preset:

  • Click the Select PTZ Preset drop-down.

  • The formerly added positions appear in a list.

  • Click on the Add new preset field.

  • Enter the name of the preset.

  • Click on the '+' to save.

Apply a PTZ Preset Position

  1. Enter Single Room View (SRV).

  2. Click the Select PTZ preset drop-down.

  3. Select a preset from the list.
    The camera will automatically turn and zoom to the selected position.

    Important

    Each PTZ position is tied to the camera the position was created for. New PTZ positions become available in Camera Settings in the Cameras tab inside the System.

Apply the Same Preset Position to Multiple Rooms

Tip

Create the same preset position in multiple rooms and name them the same to apply the same PTZ preset in an instance to the rooms on Center Overview - CO. Find out more here.

PTZ Camera Controls for System Managers

PTZ Cameras in the System Module

Access simplified PTZ camera controls and preset saving options in the System module.

For more information, visit our Recording Module and Recording Module Training Video pages.
