How to Save a Camera Position in System

Important Note for Enterprise Lite Users

This feature is for use with in-campus audiovisual (AV) inputs. Hence, it is not available for LearningSpace Enterprise Lite, which is only used for web-conferencing-based virtual simulation encounters. To unlock this feature, please upgrade to the LearningSpace Enterprise solution.

Privileges

For System Managers and Admins.

Save PTZ Preset Positions with System Manager Privilege

  1. Go to the Cameras tab in the System module.

  2. Click the Controls cogwheel in the row of your selected PTZ camera (the cogwheel on the right-hand side).

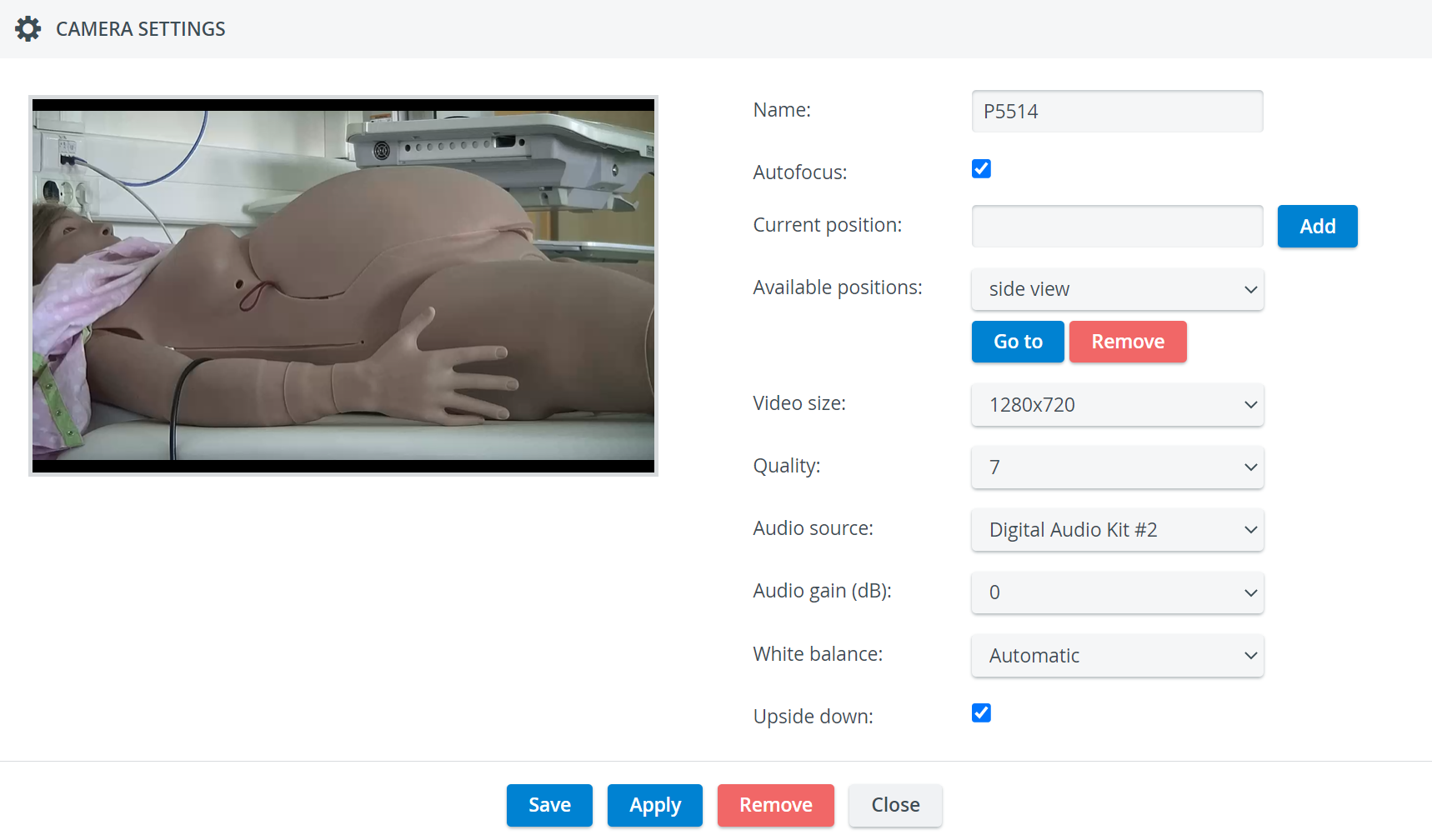

  3. The Camera Settings window opens with the video feed on the left and setting options on the right.

    1. Steer the camera by clicking in any direction inside the video feed.

    2. Zoom in or out using the scroll wheel on your mouse.




  4. Once you have set up the desired camera position, name it in the Current Position field.

  5. Click Add on the right to save your position under the name you have just entered.
    The new preset position will be available to users with access to Recording.

    Tip

    You can check if your position was saved by clicking the Available Positions drop-down.

  6. Apply saved PTZ Preset Positions on Center Overview (CO) or Single Room View (SRV).

    How to Save PTZ Camera Preset Positions in Single Room View (SRV)

    How to Control PTZ Cameras with Single Room View Tools

For more information, visit our Recording Module and Recording Module Training Video pages.
