How to Connect Low-Delay Video Output

Important Note for Enterprise Lite Users

This feature is for use with in-campus audiovisual (AV) inputs. Hence, it is not available for LearningSpace Enterprise Lite, which is used for web-conferencing-based virtual simulation encounters only. To unlock this feature, please upgrade to the LearningSpace Enterprise solution.

  1. Connect a dedicated monitor to a decoder, which has to be connected to the A/V network as all other devices (cameras, DAKs) and assigned to the desired station.

    1. Add the computer as a station in LearningSpace.

    2. Add the decoder to the LearningSpace system and to the same A/V network as the camera to be viewed.

    3. Connect a monitor to the video output port (RCA composite or DVI-I) of the decoder.

    4. Assign the decoder to the station in LearningSpace (see below)

IMPORTANT: The decoder has to be on the same A/V network as the camera.

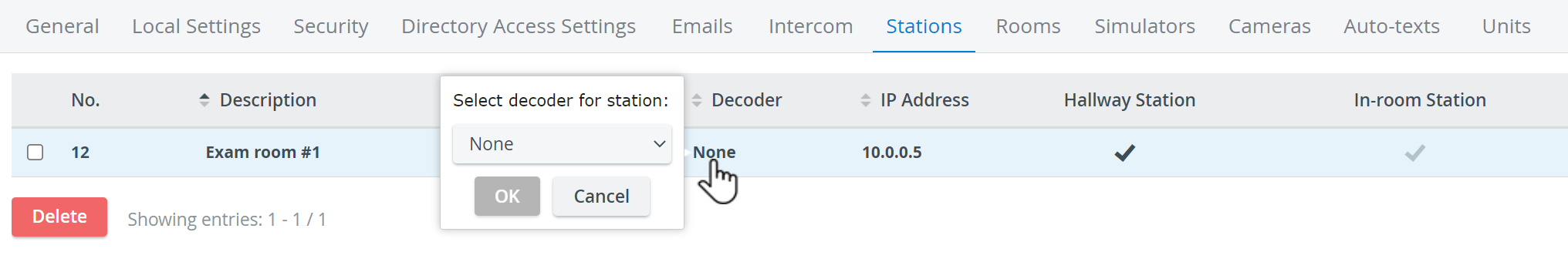

2. On the Stations tab of the System module, click the 'None' setting in the Decoder column of the desired station.

A tooltip displays for selecting a decoder.


3. Click the drop-down to select the device for the station in use.

Only decoders are listed in the drop-down.

4. Click OK to assign the decoder to the station.

For more information, visit our Recording Module and Recording Module Training Video pages.
